Dorma CS 80 MAGNEO Installation And Maintenance Manual

20 DORMA
.3125" max.
[max. 8 mm]

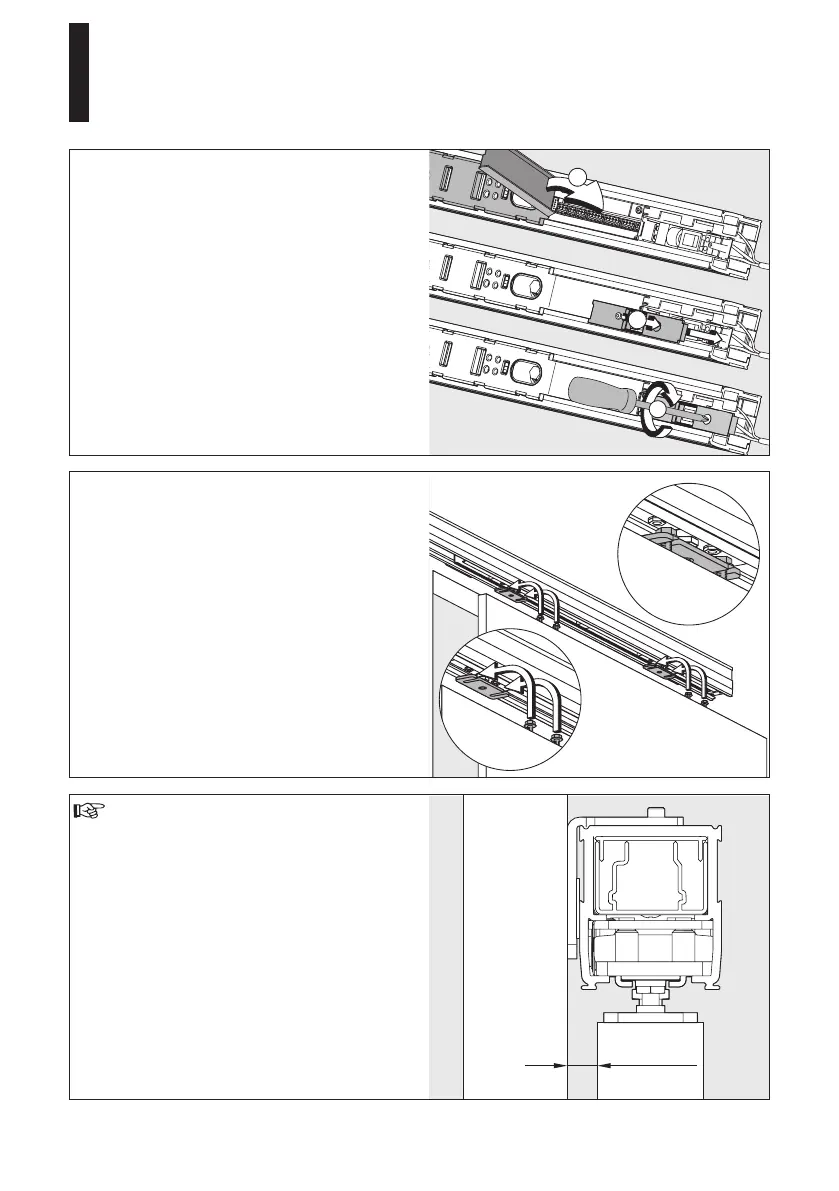

1.
2.
3.
Close the cover of the control unit housing.
Fix and screw down the cover of the power
supply housing.
Move the end stop to the end of the channel and
screw it down thoroughly (see page14, picture at
the bottom).
Insert the panel into the door panel suspension
as indicated in the picture, align it so that it is
parallel to the wall and screw it down.
When using MANET fixings, please consider the
instructions enclosed with the MANET fixings.
The distance between door panel and wall
must not exceed .3125”.
Installation and Maintenance Manual
CS 80 MAGNEO
—
