12 DORMA
7. Before Mounting
Basic requirements:
Work on electrical equipment may only be perfomed by properly qualified personnel
(electricians)
• Thefloorhastobelevel
• Glassdoorpanelshavetobemadeofsafetyglass.
• Theconnectioncablesforexternalaccessories(programswitchetc.)mustbelocatedinthe
close range of the operator before starting the installation of the system. (See Page 12)
• WithIn-Wallmounting,thewallmustnotbeclosedbeforethesystemhasbeenmounted.
When the system is installed with permanent power supply (the cable comes directly out of
the wall), ensure that the power supply line is dead (de-energized) during installation.
The power supply line must have the apropriate fuse protection in compliance with
electrical codes. Use only copper conductors for permanent connection, or use DORMA’S
optional power cord (refer to “For optional power cord connection” below for more details).
Opening direction:
The connections of the operator are always located on the side where the door is when it is
in the closed position.
Therefore the operator is symmetrical and can be turned the way your equire it. This installation
instructions show the system with connection on the right side. For left hand, just reverse the
orientation of the operator.
Please note:
In case you require additional accessories, please contact your local dealer. If you have tech-
nical questions or require help during the installation of the system, please contact our hotline
under the following number:
Please call the following number in case
of technical problems or further questions:
1-877-367-6211
For optional power cord connection
Use only DORMA’S DX3310-010 18” [457 mm].
(Nema5-15compatible).ULlistedpowercord.
The flexible power cord should not be routed
through doorways, window openings, walls,
ceilings, floor, or the like. The cord should also
not be, attached or secured to the building
structure; the cord cannot be concealed behind
walls and the like. Make sure the power cord
does not become entrapped in any moving parts
of the operator, door, or system.

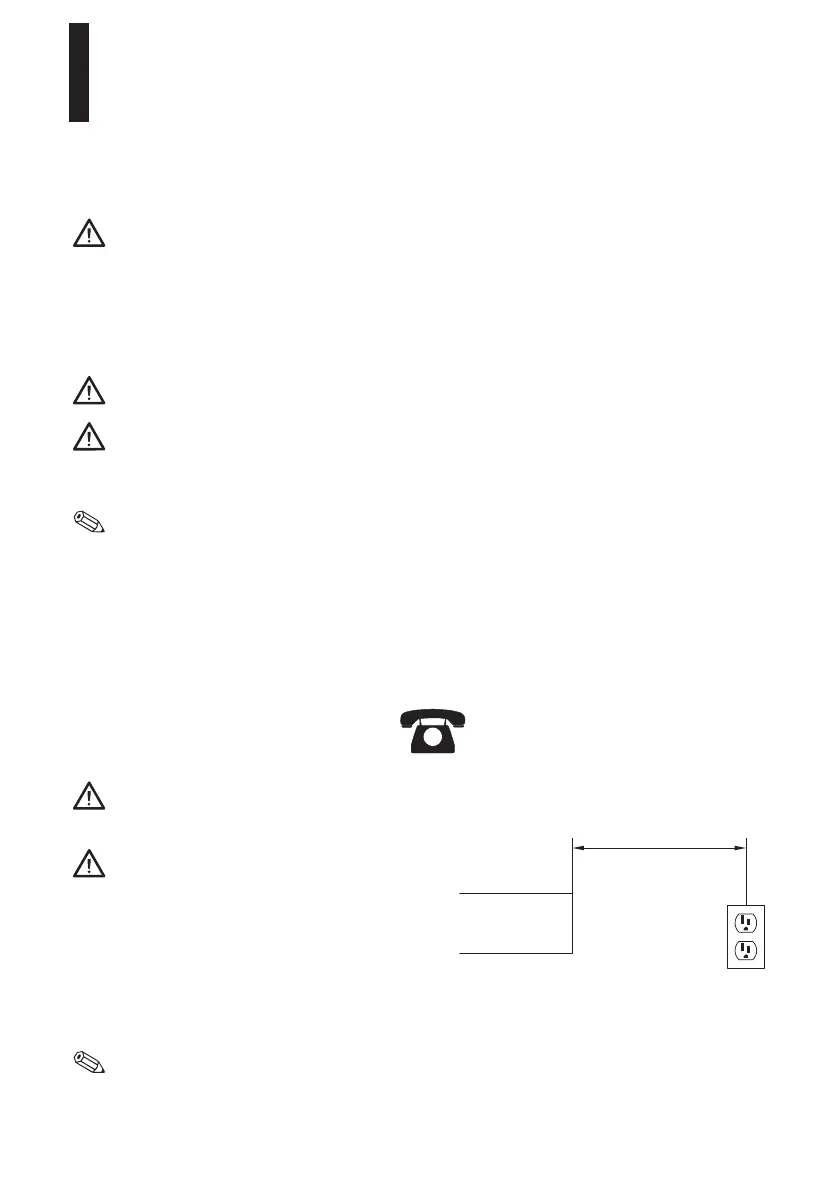

For in-wall mounting:
When installing the socket, please remember that
you should be able to reach it by hand. (Max 14” away)
max. 14"
CS 80 MAGNEO
Installation and Maintenance Manual
CS 80 MAGNEO
—
