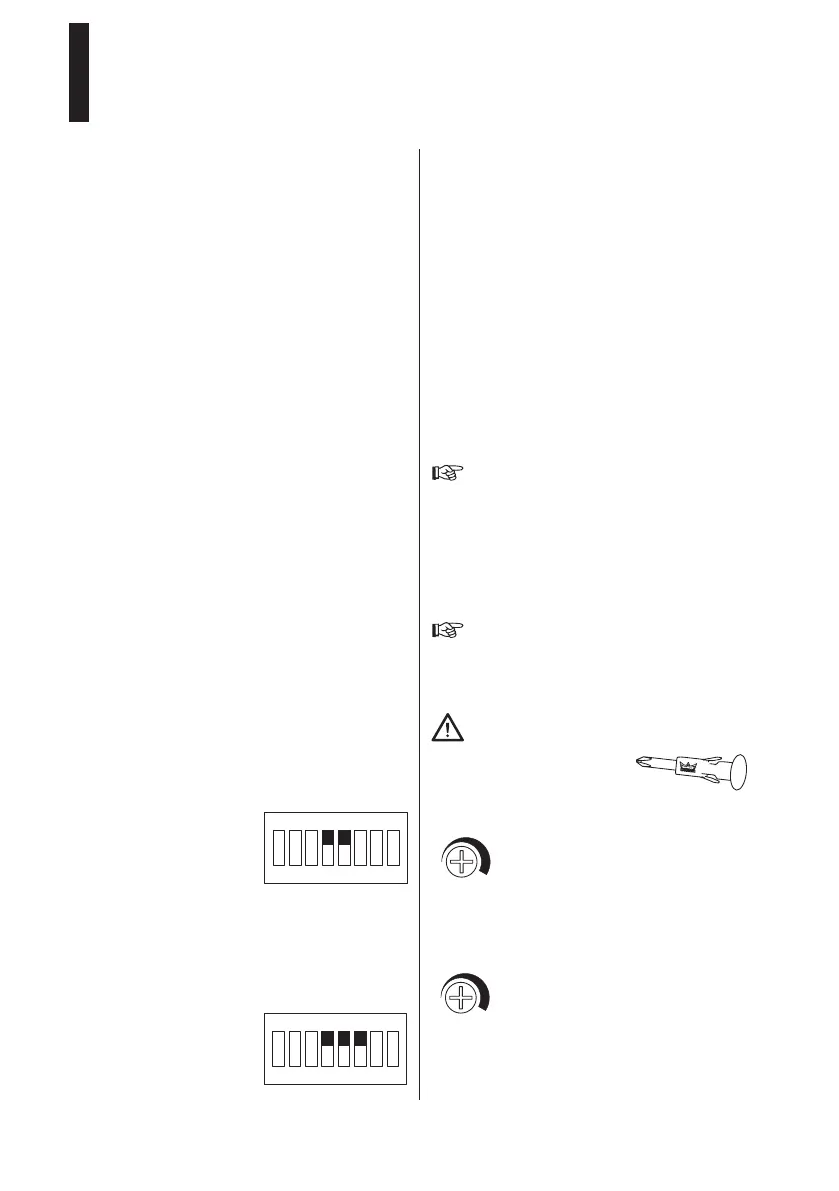

14. Operating instructions
1. Opening the door in AUTOMATIC
Function
When the system is delivered, the
CS 80 MAGNEO is adjusted to AUTOMATIC
Function. Depending on the installed acces-
sories, the door can be opened in different
ways.
Push & Go
As soon as the door is moved manually into
opening direction by approximately .4“
[10 mm], the operator automatically moves
the door panel further in the desired direc-
tion.
The door closes automatically.
Pushbutton:
Following the activation of the pushbutton (e.
g. wall-mounted pushbutton or radio transmit-
ter) the operator opens and closes the door.
Sensors:
Where presence sensors (radar motion detec-
tors or similar) are connected, the door opens
automatically as soon as a person approaches
the door system.
The door closes automatically.
PERMANENT OPEN via double-click
When this function is activated, the door can
be opened permanently by double-clicking
the pushbutton. In order to close the door,
a further double-click on the pushbutton is
required.
To activate this function
set DIP switch 4 and 5
to ON position.
Opening/Closing via pushbutton
(alternate action)
As soon as you push the button or move the
door manually the door will open. When you
push the button for a second time or move
the door panel by hand, the door will close.
To activate this function
set DIP switch 4, 5 and 6
to ON position.
Express-Function
The door can be moved manually into its
driving direction without extra resistance.
When the maximum speed is exceeded, the
operational resistance will increase in line
with the speed by which it is exceeded.
As soon as the user has released the door
panel, the operator will softly slow it down to
maximum speed. This function is activated
during all opening and closing cycles.
2. In the event of a power failure
In the event of a power failure, the door can
be opened and closed by hand.
However, in this case the system does
not brake the door panel, which means
that the user has to move (hold) it all the
way by hand.
As soon as the voltage returns, the operator
will automatically perform a position initiali-
zation.
During this position initialization, the
movement range of the door has to be
free of obstacles.
3. Adjustments
Only use the enclosed red screwdriver
to perform potentiometer adjustments!
Speed adjustment
The maximum speed depends on
the weight of the door panel. You
can reduce the speed with the aid
of the potentiometer (infinitely
variable).
Adjustment of hold-open time
The door will close automatically
on expiry of the adjusted hold-open
time following it has reached
“open” position. You can adjust the
hold-open time infinitely from 5 to
30 seconds with the aid of the
potentiometer.
speed /
Geschwindigkeit
hold open time /
Offenhaltezeit
