Dorma CS 80 MAGNEO Installation And Maintenance Manual

33DORMA
8
7
6
5
4
3
2
1
ON

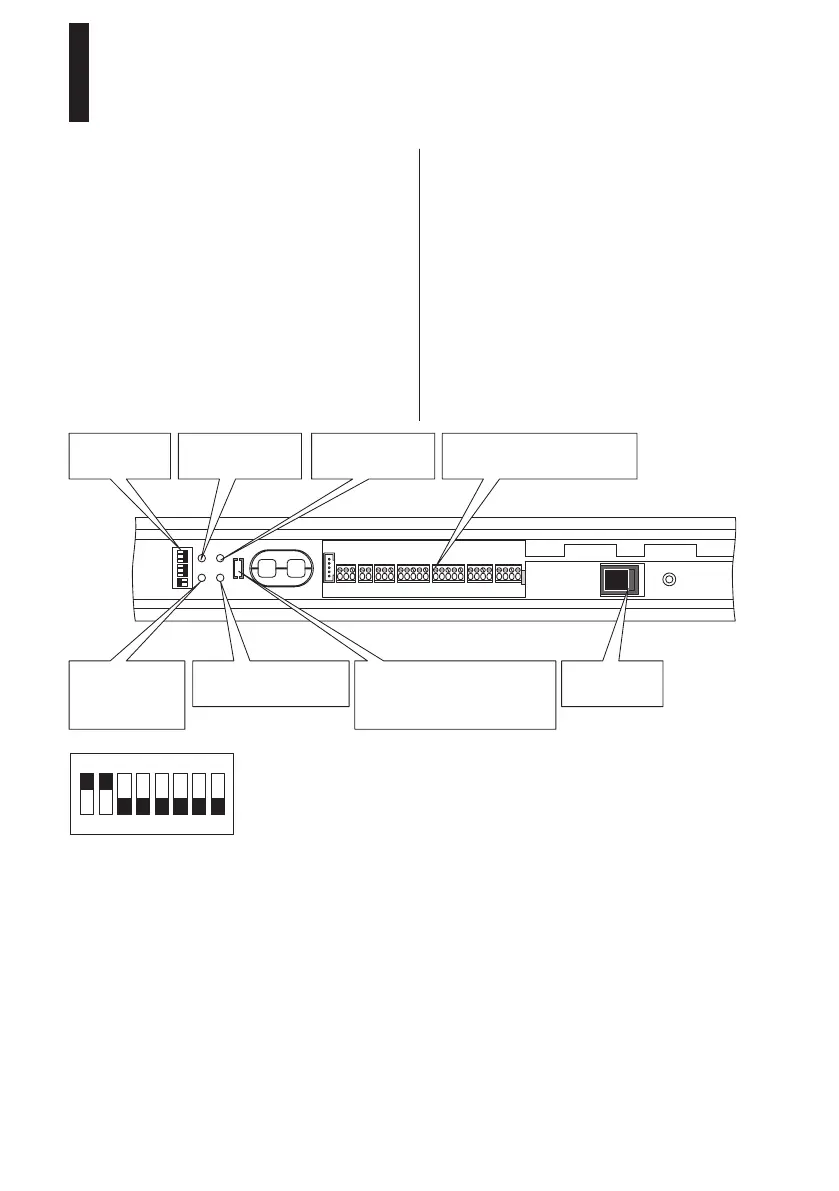

DIP switch
LED
light indicator
Potentiometer
hold-open time
Connection terminals for
external accessories
Mains switch
Energy mode switch
(Full-Energy/Low-Energy)
(located below the seal)
Potentiometer
speed adjustment
Reset button
Start
learning cycle
8
76
5
4
3
21
ON
Permanent Open Function via double-click
This function can only be adjusted when a
pushbutton is connected.
In order to activate this function, DIP swit-
ches 4 and 5 at the control unit have to be
set to “ON” position.
Opening/closing via pushbutton
This function is only available with pushbut-
ton or Push & Go Function.
In order to activate it, DIP switches
4, 5 and 6 have to be set to „ON“ position.
Closing force
In case the door does not close properly due
to the door seals, you can increase the force
with which the operator presses the door
against the seal.
In order to do so, set DIP switch 7 to “ON”
position.
Compliance check
Check speed, forces, and function of sensors
to ensure safe operation.
DIP switch settings
You can activate different inputs at the connection terminals via these
switches and thus adjust different operation modes.
8 OFF=Nolockingfunction  ON=Lockingfunction
7 OFF = Reduced closing force ON = Enhanced closing force
6 OFF = Automatic Function activated ON = Permanent Open Function activated
5 OFF = External motion detector activated ON = External pushbutton activated
4 OFF = Internal motion detector activated ON = Internal pushbutton activated
3 OFF = Test low active ON = Test high active
2 OFF = Sensor test at secondary closing edge deactivated
ON = Sensor test at secondary closing edge activated
1 OFF = Sensor test at main closing edge deactivated
ON = Sensor test at main closing edge activated
Installation and Maintenance Manual
CS 80 MAGNEO
—
