Dorma CS 80 MAGNEO Installation And Maintenance Manual

29DORMA
Connection terminals
Main closing edge is the leading edge of the door.
Activating the sensor will disable automatic operation in the closing direction.
Secondary closing edge is the trailing edge of the door. Activating the sensor will disable
automatic operation in the opening direction.
Approach in case of a short circuit at the connection terminal:
1.Remove short-circuit.
2. Switch mains switch off and on again.

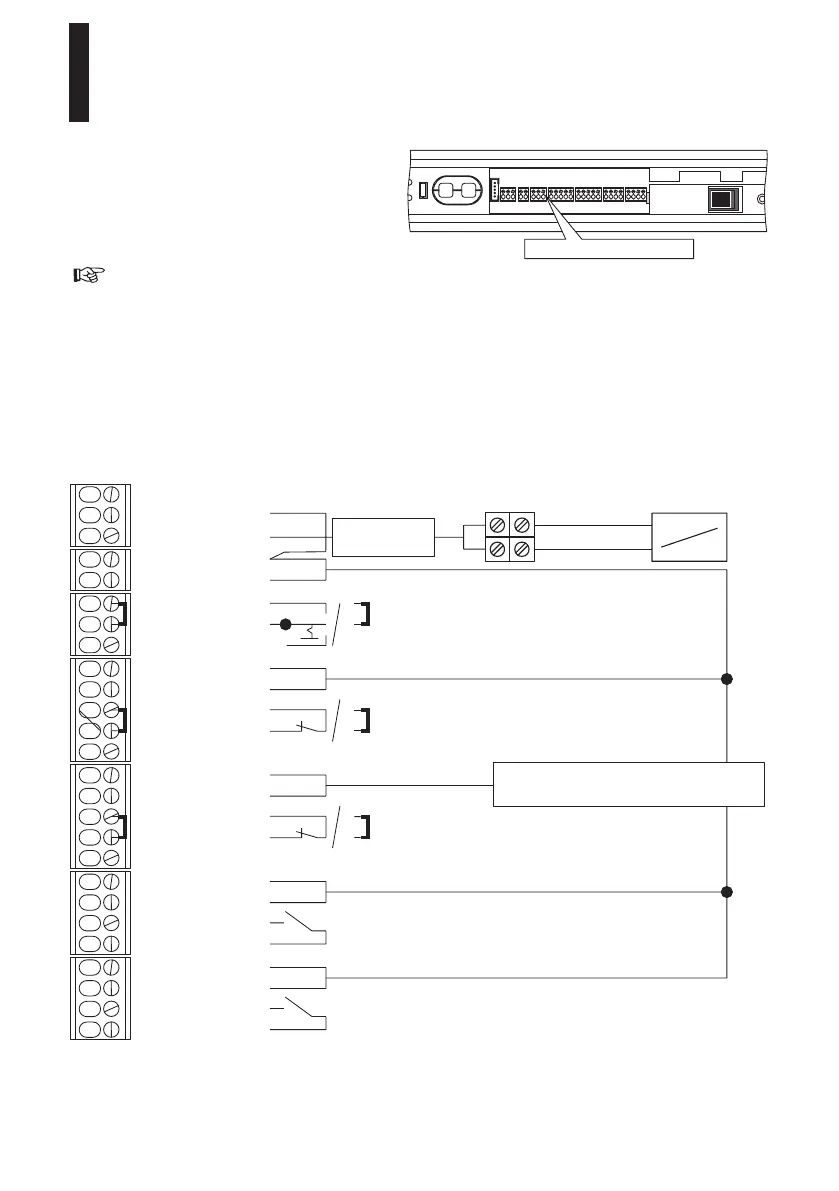

10. Connection diagrams
In order to facilitate the connection of the
wires, the different terminal blocks can be
removed with pointed pliers.
94
95
96
1
3
1
3
15
3
13
1
3
42
3
31
3
34
1
3
11
3
13
1
3
41
3
Power supply for external
accessories 27 V DC, max. 700 mA
not assigned
Locking device
Locking device
+27 V DC
GND
Automatic
GND
Permanent open
Internal activator inside
(e.g. radar motion detector / pushbutton)
External activator
(e.g. radar motion detector / pushbutton)
Program switch (optional)
Remove jumper before a program switch
will be installed
Safety sensor for secondary closing edge
Remove jumper before a sensor
will be installed
Safety sensor for main closing edge
Remove jumper before a sensor
will be installed
+27 V DC
GND
GND
Safety sensor test
+27 V DC
GND
GND
Safety sensor test
+27 V DC
GND
GND
+27 V DC
GND
GND
connector
Optional:
MAGNEO Locking device
locking cable
Installation and Maintenance Manual
CS 80 MAGNEO
—
