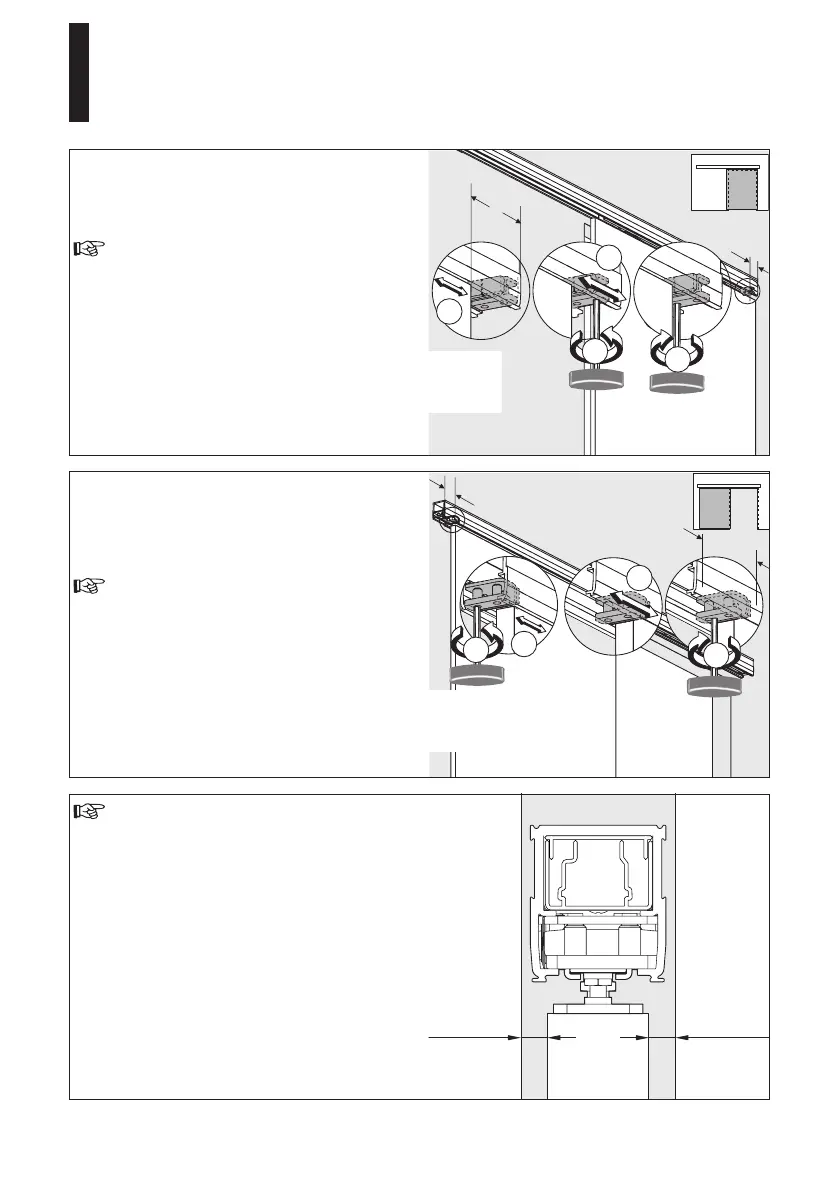

The distance between door panel and wall
must not exceed .3125” [8 mm]
The clearance has to be covered with
brushes or similar, if required.
Please install radio receivers, program switches
and/or sensors and lay the cables as indicated in
the enclosed instructions.
Continue with the commissioning of the system
as indicated starting from page 32.
Move the door panel to the desired closed position.
Move the end stop next to the door
panel and screw down tight (3.7 ft/lb).
The end stop may only be moved to the
inside by a certain dimension.
34.4” [875 mm] operator=>7.9” [200 mm] max.
39.4” [1000 mm] operator => 9.5” [250 mm] max.
48.2” [1125 mm] operator => 11.8” [300 mm] max.
Relax the screws of the end stop on the other side
and move the door to the desired open position.
Move the end stop next to the door
panel and screw down tight (3.7 ft/lb).
The end stop may only be moved to the
inside by a certain dimension.
34.4” [875 mm] operator=>7.9” [200 mm] max.
39.4” [1000 mm] operator => 9.5” [250 mm] max.
48.2” [1125 mm] operator => 11.8” [300 mm] max.
