Move the end stop to the end of the channel.
The end stop must not fall out of the
operator.

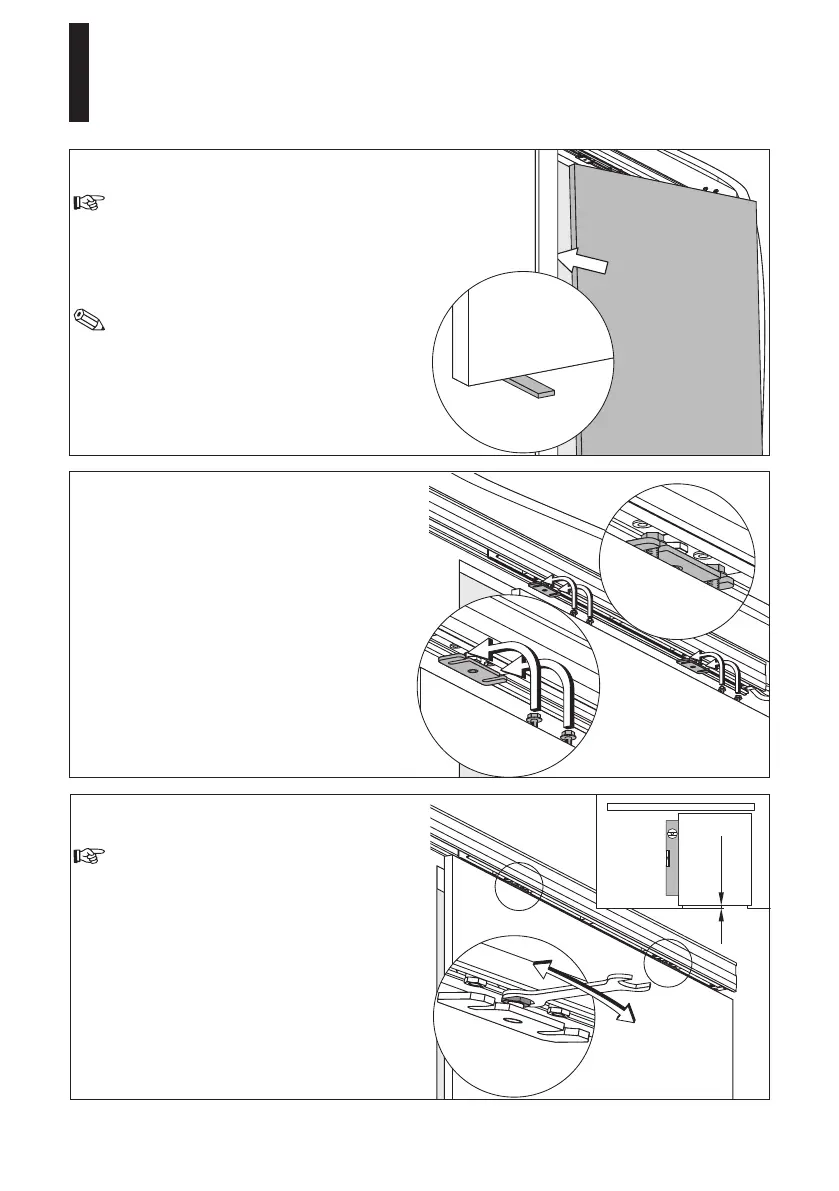

Place the door panel inside the door frame. As
the door panel is wider than the doorway, you
will have to tilt it.
As it will be difficult to get hold of the door
panel with in-wall mounting, you should use
wooden wedges to help you to lift the door
panel.
Insert the door panel into the door panel
suspension, align it so that it is parallel to the
wall and screw it down.
Align the door panel with the aid of the adjust-
ment nuts so that it is level.
The distance between the bottom edge of
the door panel and the floor should amount
to .250” [6 mm], however, it must not
exceed .3125” [8 mm].
Installation and Maintenance Manual
CS 80 MAGNEO
—
