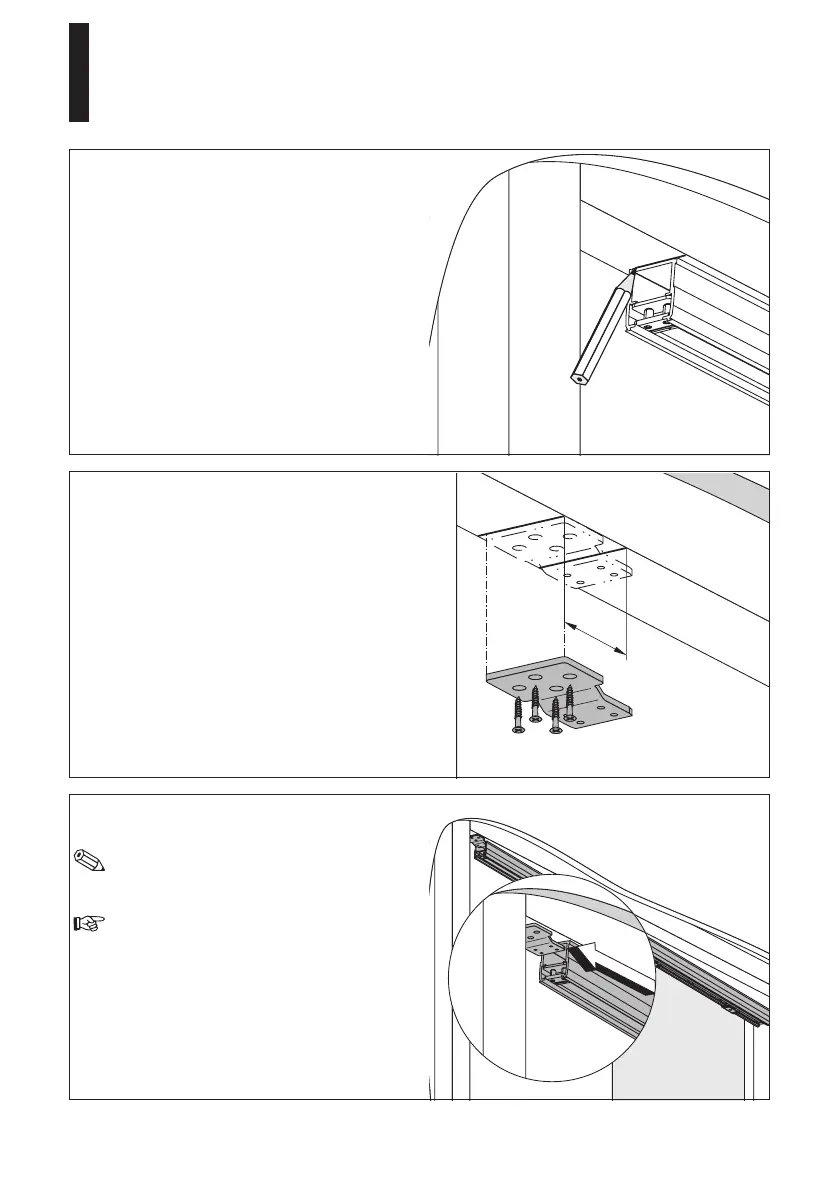

Hold the operator in the desired position and
mark the end of the operator on the side
opposite the connections.
Draw a further line at a distance of 1.7” [43
mm].
Then position the fixing bracket at the second
line and mark the drill holes.
Drill the holes and fix the fixing bracket with
adequate screws.
Then move the operator over the fixing bracket
as far as it will go.
Make sure to position the operator correctly,
i.e. the side with the connections must be
opposite the fixing bracket.
Never leave the operator on the fixing
bracket without holding it in position as this
would deform the fixing bracket.
Align the operator so that it is parallel to the
wall.
