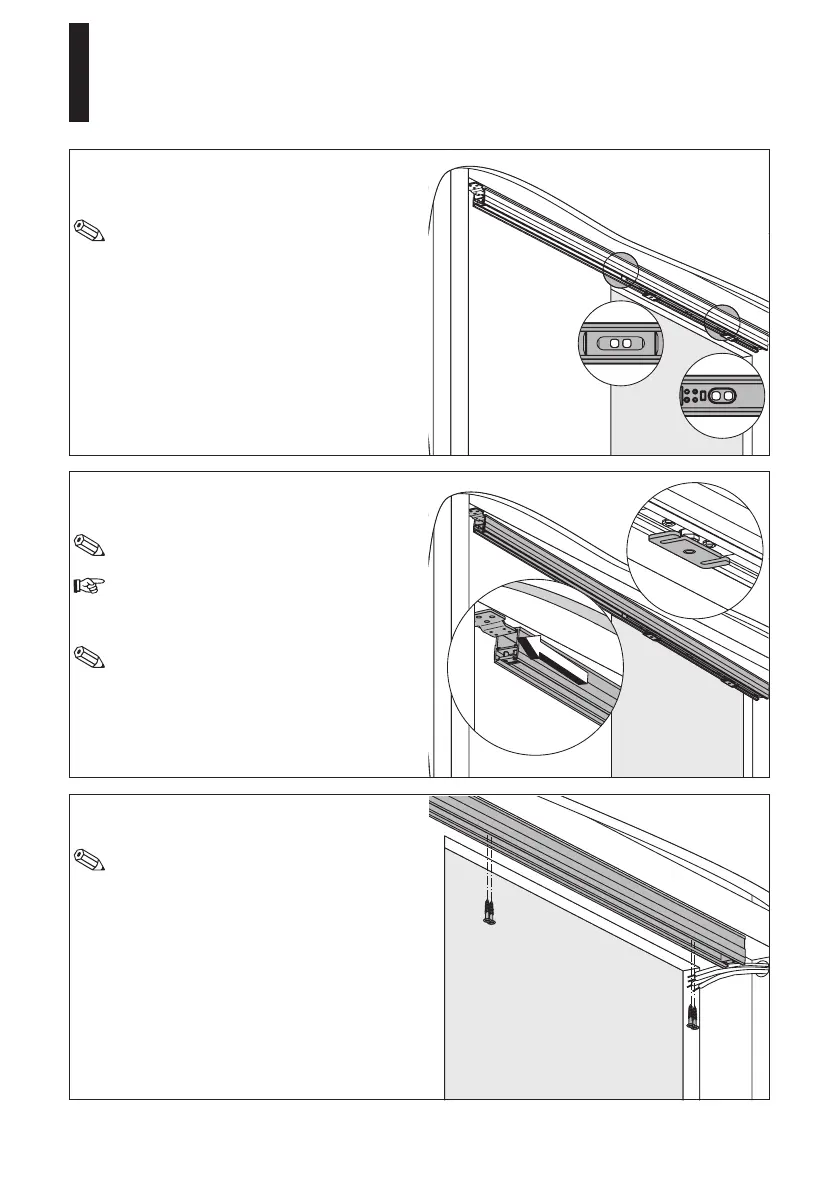

Then mark the fixing holes through the holes in
the operator.
In order to reach all 4 holes, you have to
move the carrier.
Remove the operator and drill fixing holes with
a diameter of .165” [4.2 mm ] for the supplied
sheet metal screws. The sheet metal must at
least be .08” [2 mm] thick and the subconstruc-
tion must at least carry 528 lbs. [240 kg.]
Then move the operator over the fixing bracket
as far as it will go.
The side with the connections must be
opposite the fixing bracket.
Never leave the operator on the fixing
bracket without holding it in position as this
would deform the fixing bracket.
The openings of the door panel suspension
have to point to the front as you can not
turn them following the installation of the
system.
Fix the operator under the cross girder with the
selected screws.
The operator has to be fixed so that it is
exactly level and parallel to the wall.
All connection cables have to be laid in the
close range of the operator at this point.
The holes for the cables must be sufficient-
ly big and must not have sharp edges.
