DR RAPID-FEED 16.50 PRO User Manual

Figure 2
Hopper
Assembly
Chipper
Extended Top-
Discharge Package
(optional Accessory)
Parts Box
Discharge
Chute
Safety
Glasse
s
Safety &
Operating
Instructions
Manual
Hardware
Packa
g
e
Engine
Owners
Manual
Road-Towing Package
(optional Accessory)

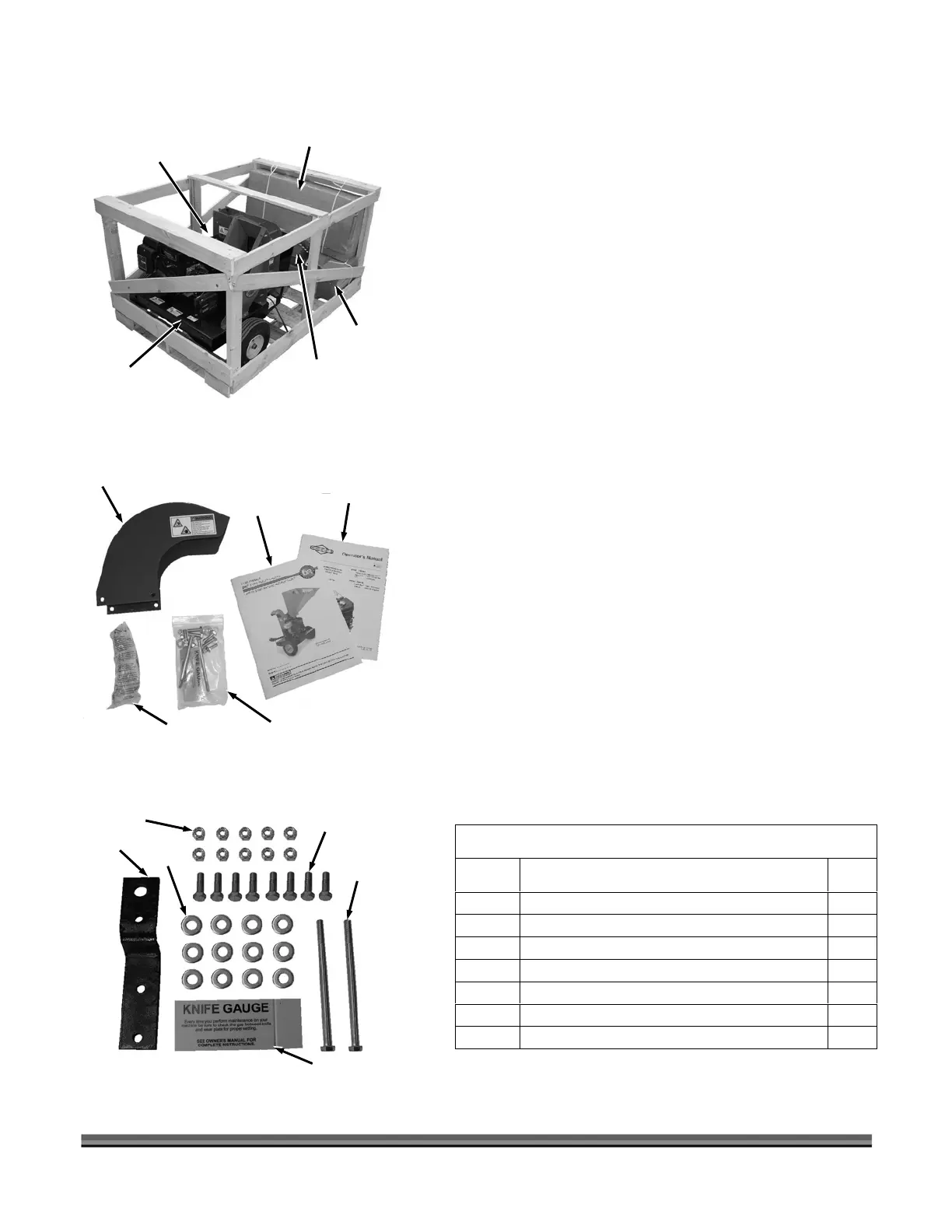

Unpacking the 16.50 PRO DR RAPID-FEED CHIPPER
NOTE: Unpacking the 16.50 PRO DR RAPID-FEED CHIPPER is a
two-person job. We recommend you have an extra set of hands
available before you begin because the 16.50 PRO DR RAPID-
FEED CHIPPER weighs 372 lbs. (Manual Start) and 392 (Electric
Start).
Tools and Supplies Needed:
• Gloves
• Metal Shears (Side Cutters)
• Pry Bar
• Hammer
Parts supplied on Skid (Figure 2):
• 16.50 PRO DR RAPID-FEED CHIPPER
• Hopper Assembly
• Extended Top-Discharge Chute (if ordered, see
Chapter 7 “Chipper Accessories”)
• Road-Tow Package (if ordered, see Chapter 7
“Chipper Accessories”)
• Parts Box containing (Items below and Figure
3):
− Discharge Chute
− Safety Glasses
− Safety & Operation Instructions
Manual
− Engine Owner’s Manual
− Hardware Package (Figure 4 and Table
below)
Fi
g
ure 3
1
Figure 4
4
3
5
2
6
H
ARDWARE PACKAGE CONTENTS (FIGURE 4)
ITEM # DESCRIPTION
QTY
1 Bolt, 5
/
16-18 X 5-1
/
4" 2
2 N
y
lon Locknut, 5
/
16-18 10
3 5
/
16-18 x 1" Bolts 8
4 5
/
16" Flat Washer 12
5 Hitch Plate 1
6 Knife Ga
p
Gau
g
e 1
7 En
g
ine Ke
y
(
not shown
)
2
14 16.50 PRO DR
®
RAPID-FEED™ CHIPPER

DR RAPID-FEED 16.50 PRO Specifications

General

Brand	DR
Model	RAPID-FEED 16.50 PRO
Category	Chipper
Language	English
