32 16.50 PRO DR
®
RAPID-FEED™ CHIPPER
ools Needed:
• Tape Measure
• Two 1/2" Wrenches
• 7/16" Wrench
• Straightedge
T
Removing the Belt

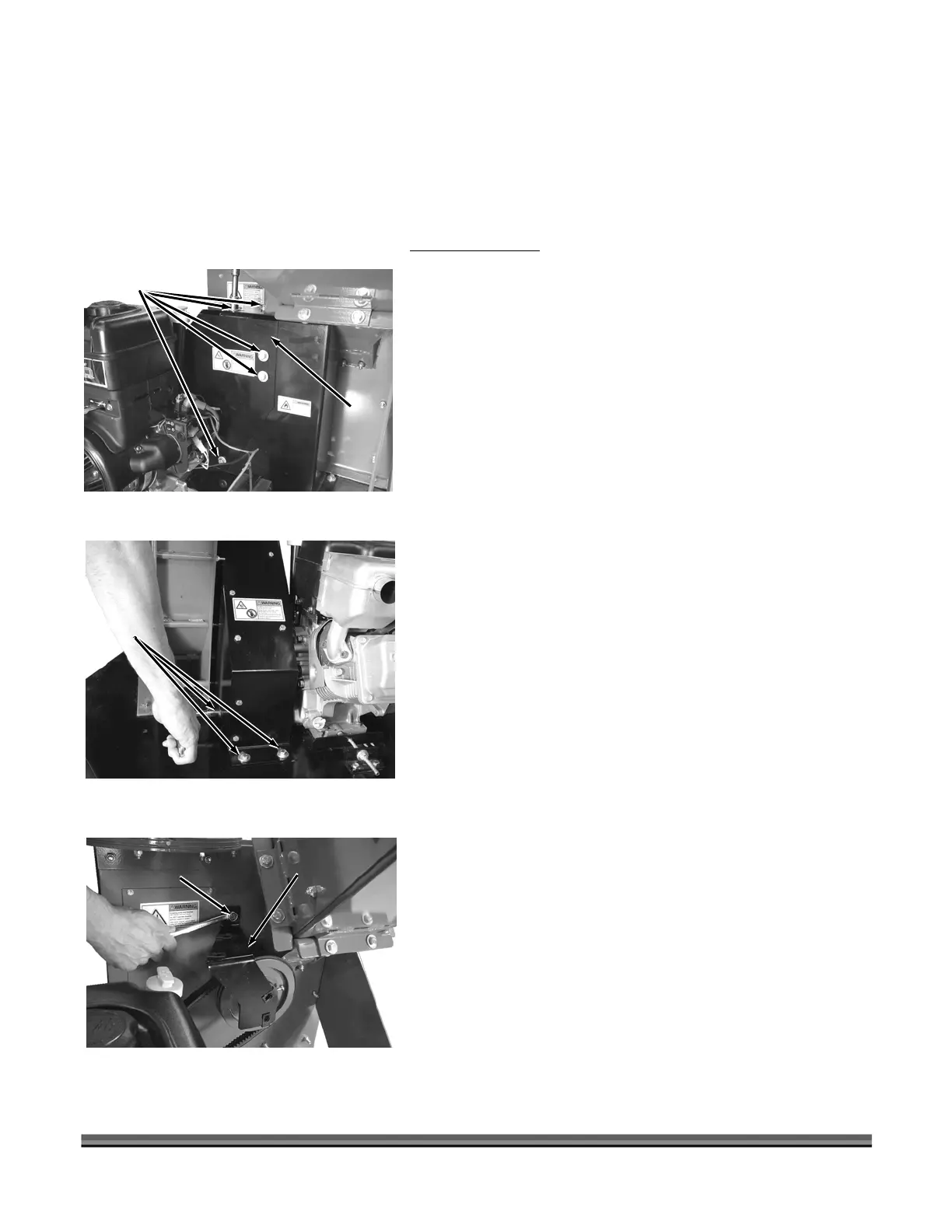

1. Remove the eight Bolts, Lock Washers and Flat
Washers from the Belt Guard using a 1/2" Wrench
(Figures 26 and 27).
2. Remove the Belt Guard.
3. Remove the Locknut and Belt Guard Bracket (Figure
28).
Belt Guard
Hardware
Belt
Guard
Figure 26
Belt Guard
Hardware
Figure 27
Locknut
Belt Guard
Bracket
Figure 28
