Operation
3. With mechanically controlled gas mixers:
Close the flow control valves.
8.14.2 O2 insufflation
8.14.2.1 Overview
On the electronically controlled gas mixer, O
2 insufflation is performed using the O2
flowmeter. On the mechanically controlled gas mixer, O
2 insufflation is performed
using an integrated O
2 flowmeter or an external O2 flowmeter.

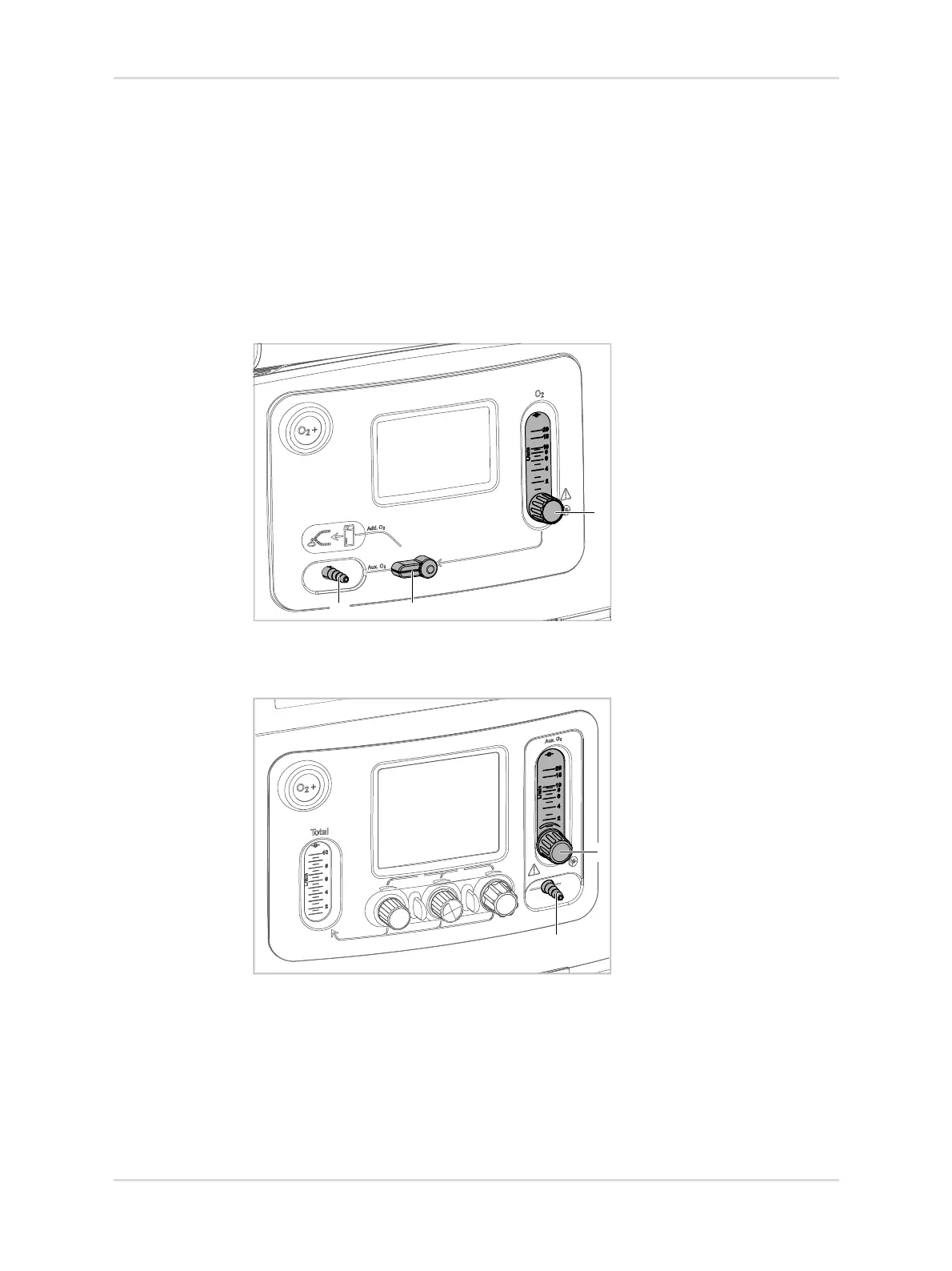

Electronically controlled gas mixer:
Prerequisite: The O
2 switch is horizontal in the Aux. O2 position (3).
Mechanically controlled gas mixer with electronic flow measurement:
Prerequisite: The device is equipped with the "integrated O
2 flowmeter" hardware
option.
5363753638
1
2
3
1
2
