244 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Troubleshooting

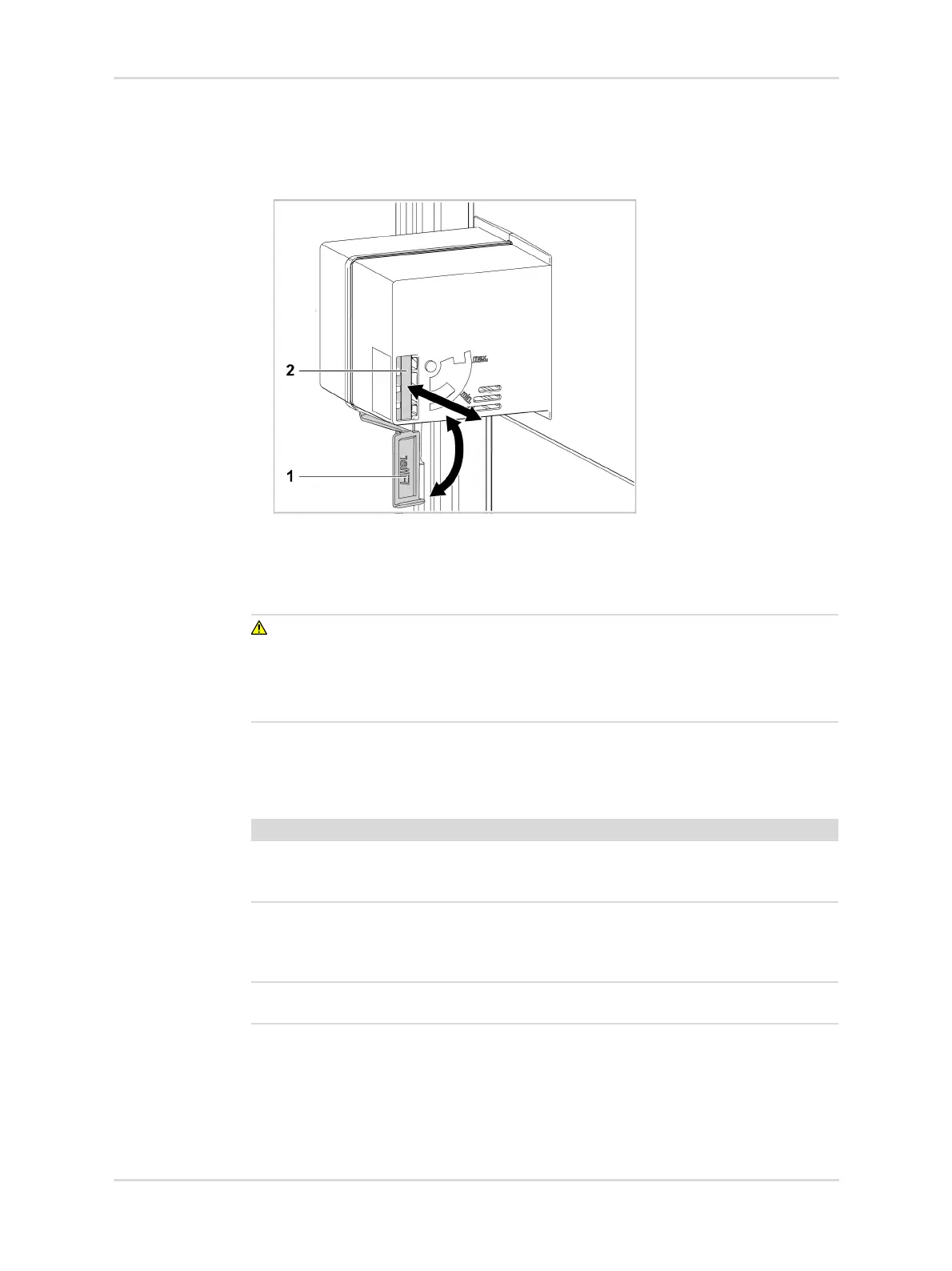

12.11.1 Replacing the particle filter of the active anesthetic gas receiving
system (AGS)
1. Fold down the cover (1).
2. Withdraw the particle filter (2).
3. Clean the particle filter and reinsert it.
Or
Insert a new particle filter.
CAUTION
Risk of contaminating the ambient air
A filter cover that is not properly closed can cause contamination of the ambient air
with anesthetic gases.
Take care that the cover is properly closed.
4. Fold up the cover.
12.12 Cylinder pressure reducer
38127
Fault Cause Remedy
The connection between
the gas cylinder and the
pressure reducer leaks.
The sealing ring is dam-
aged.
Replace the sealing ring.
The outlet pressure rises,
the relief valve relieves the
outlet of the pressure
reducer.
The valve seat is soiled or
damaged.
Close the gas cylinder
valve. Have the item
repaired by service per-
sonnel.
Leakage in the housing
area
The diaphragm is faulty. Have the item repaired by
service personnel.
