Overview
3.3 Gas flow diagram
3.3.1 Breathing system and adjacent gas-carrying components

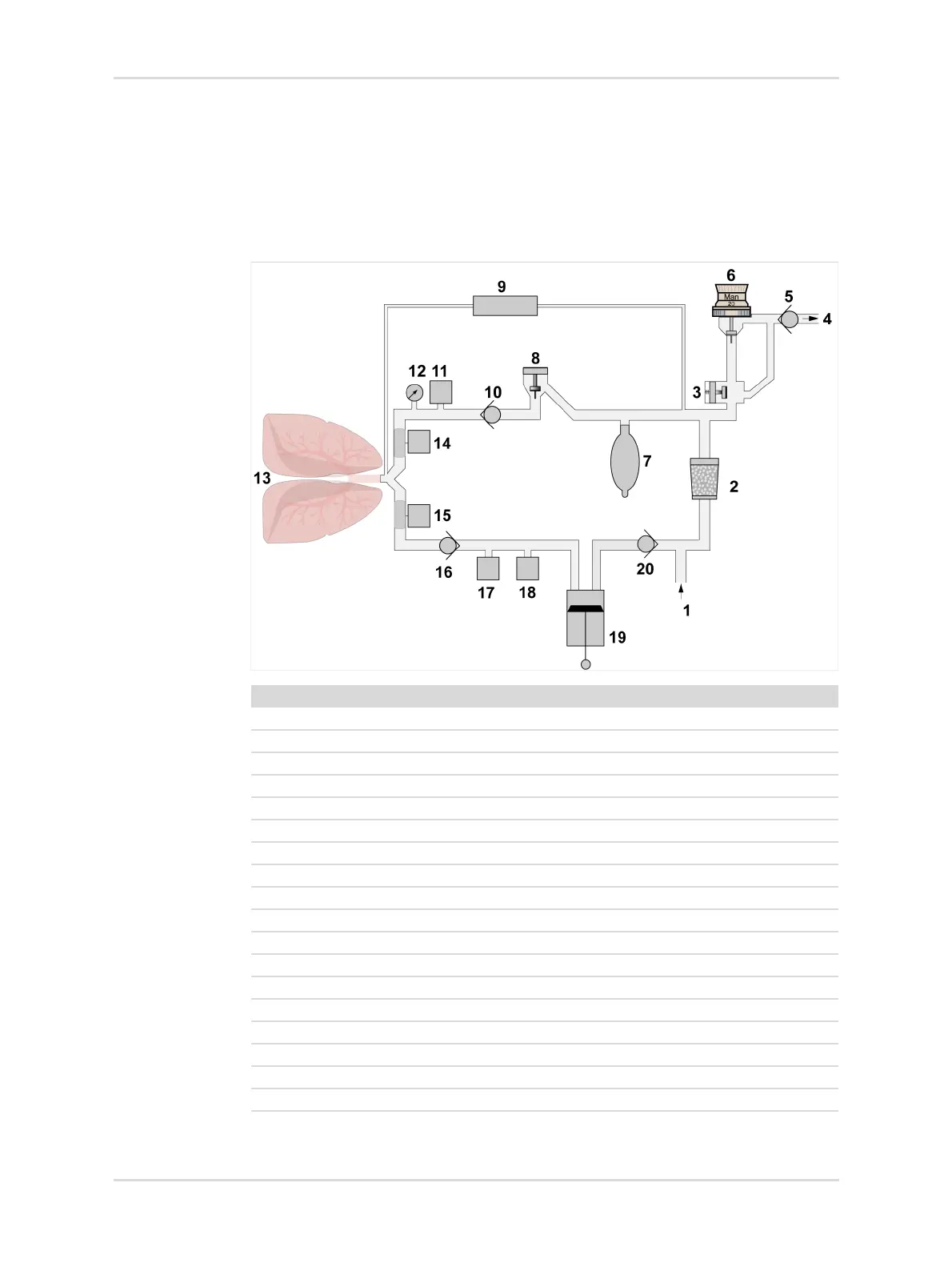

The following schematic illustration shows the breathing system and adjacent
components in the gas flow of the breathing gas. Some of the components shown
are available as an option or only with certain device equipment.
36482
No. Designation
1 Fresh gas (O
2, Air, N2O) and anesthetic gas
2CO
2 absorber
3 Changeover between mechanical ventilation and Manual / Spontaneous
4 Anesthetic gas receiving system
5 Anesthetic gas scavenging valve
6 APL valve
7 Breathing bag
8 PEEP/Pmax valve
9 Patient-gas measurement module
10 Expiratory valve
11 Expiratory pressure measurement
12 Airway pressure gauge
13 Patient
14 Expiratory flow sensor
15 Inspiratory flow sensor
16 Inspiratory valve
17 Inspiratory pressure measurement
18 Inspiratory O
2 sensor
