Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 57
Overview
3.3.2 Gas supply (mechanically controlled gas mixer with flow tubes)

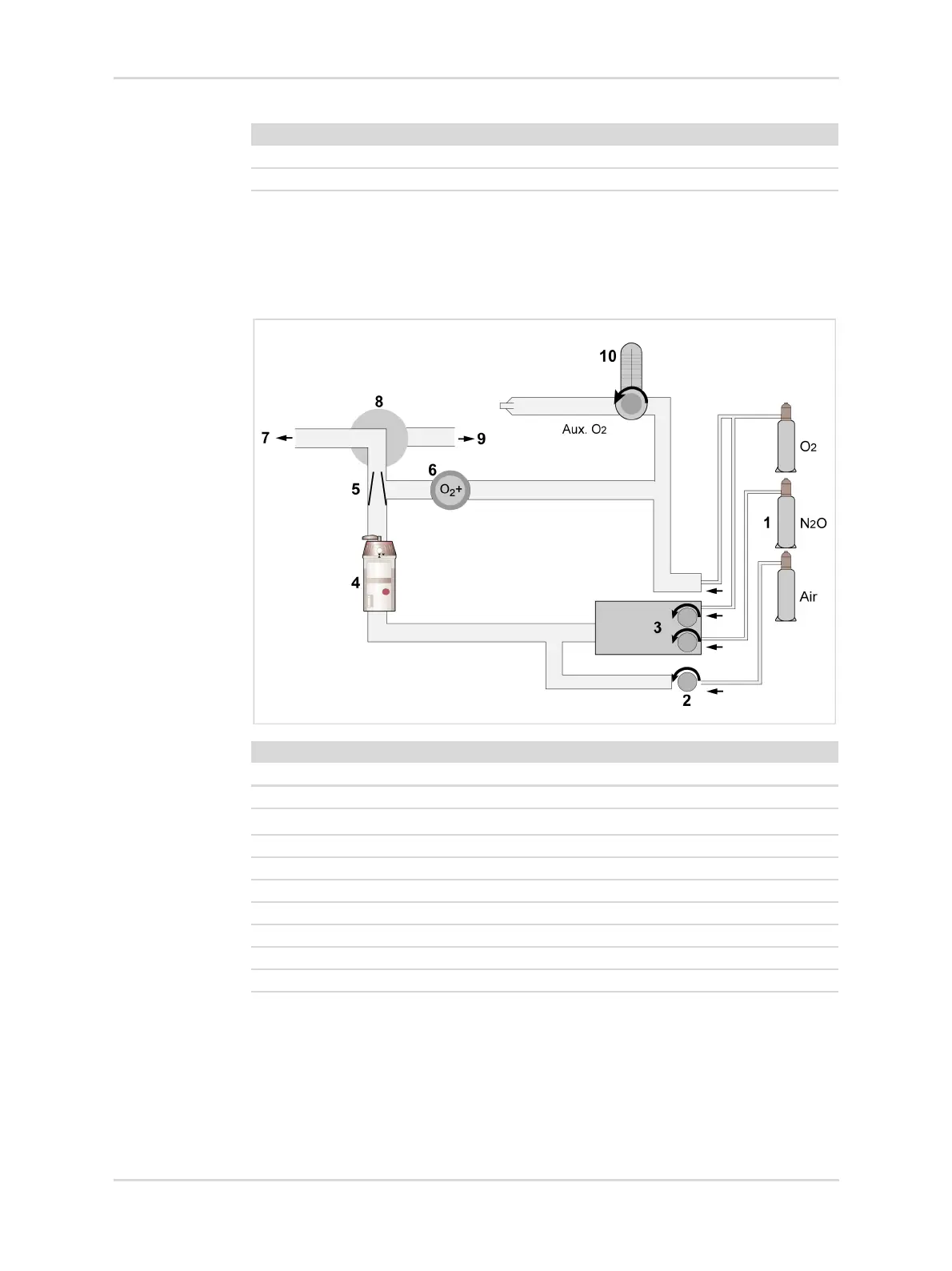

The following schematic illustration shows the gas mixer and adjacent components
in the fresh-gas flow. Some of the components shown are available as an option or
only with certain device equipment.
19 Piston ventilator
20 Fresh-gas decoupling valve
No. Designation
54654
No. Designation
1 Gas supply (central supply or gas cylinders)
2 Flow control valves
3
Minimum O
2 delivery
1)
1) Only with 3-gas gas mixers
4 Vaporizer
5Ejector
6O
2 flush
7 Breathing system
8 Switch-over valve
9 External fresh-gas outlet
10 O
2 flowmeter
