58 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Overview
3.3.3 Gas supply (mechanically controlled gas mixer with electronic
flow measurement)

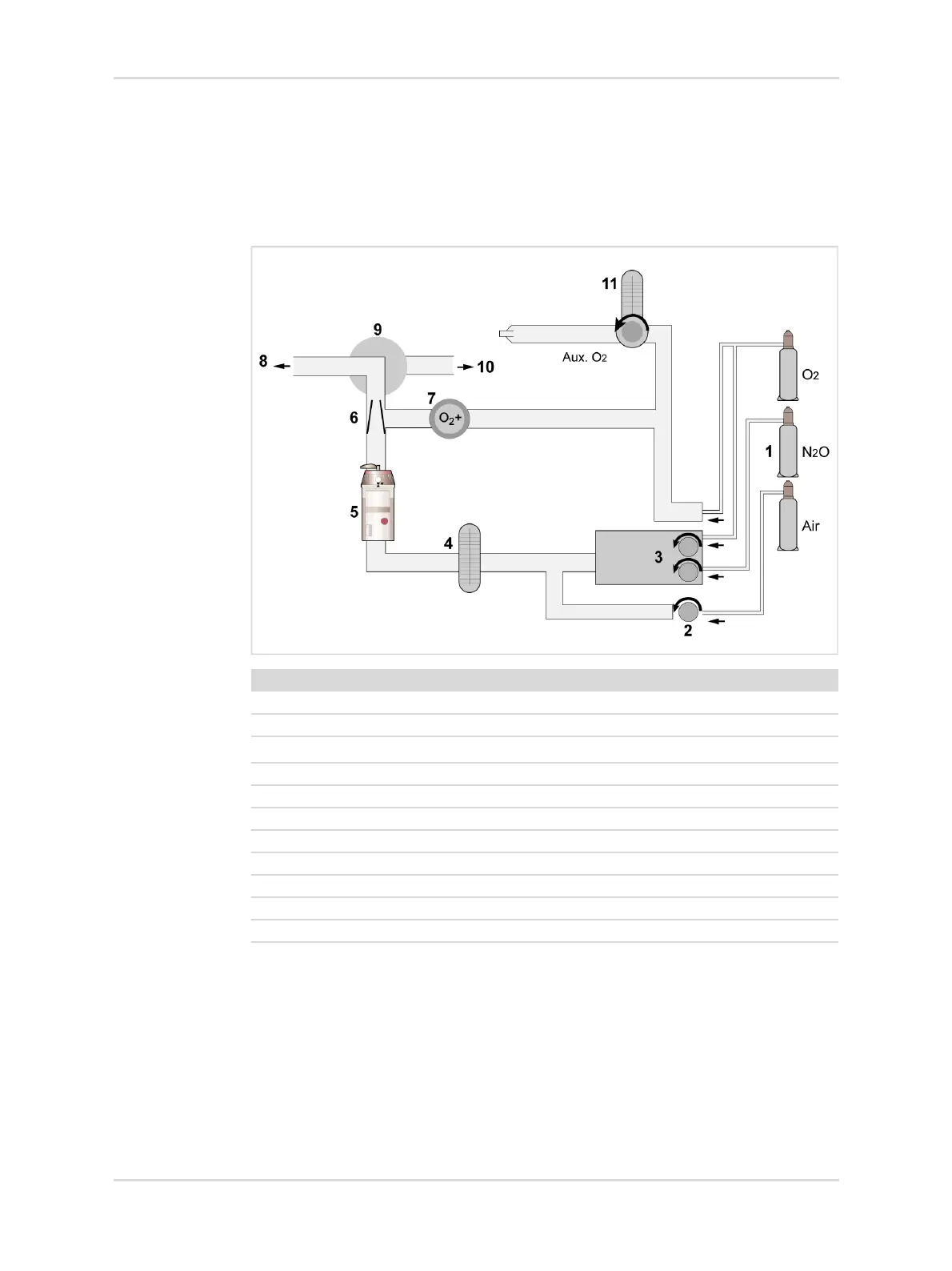

The following schematic illustration shows the gas mixer and adjacent components
in the fresh-gas flow. Some of the components shown are available as an option or
only with certain device equipment.
36485
No. Designation
1 Gas supply (central supply or gas cylinders)
2 Flow control valves
3
Minimum O
2 delivery
1)
1) Only with 3-gas gas mixers
4 Total flow tube
5 Vaporizer
6Ejector
7O
2 flush
8 Breathing system
9 Switch-over valve
10 External fresh-gas outlet
11 O
2 flowmeter
