Overview
3.3.4 Gas supply (electronically controlled gas mixer)

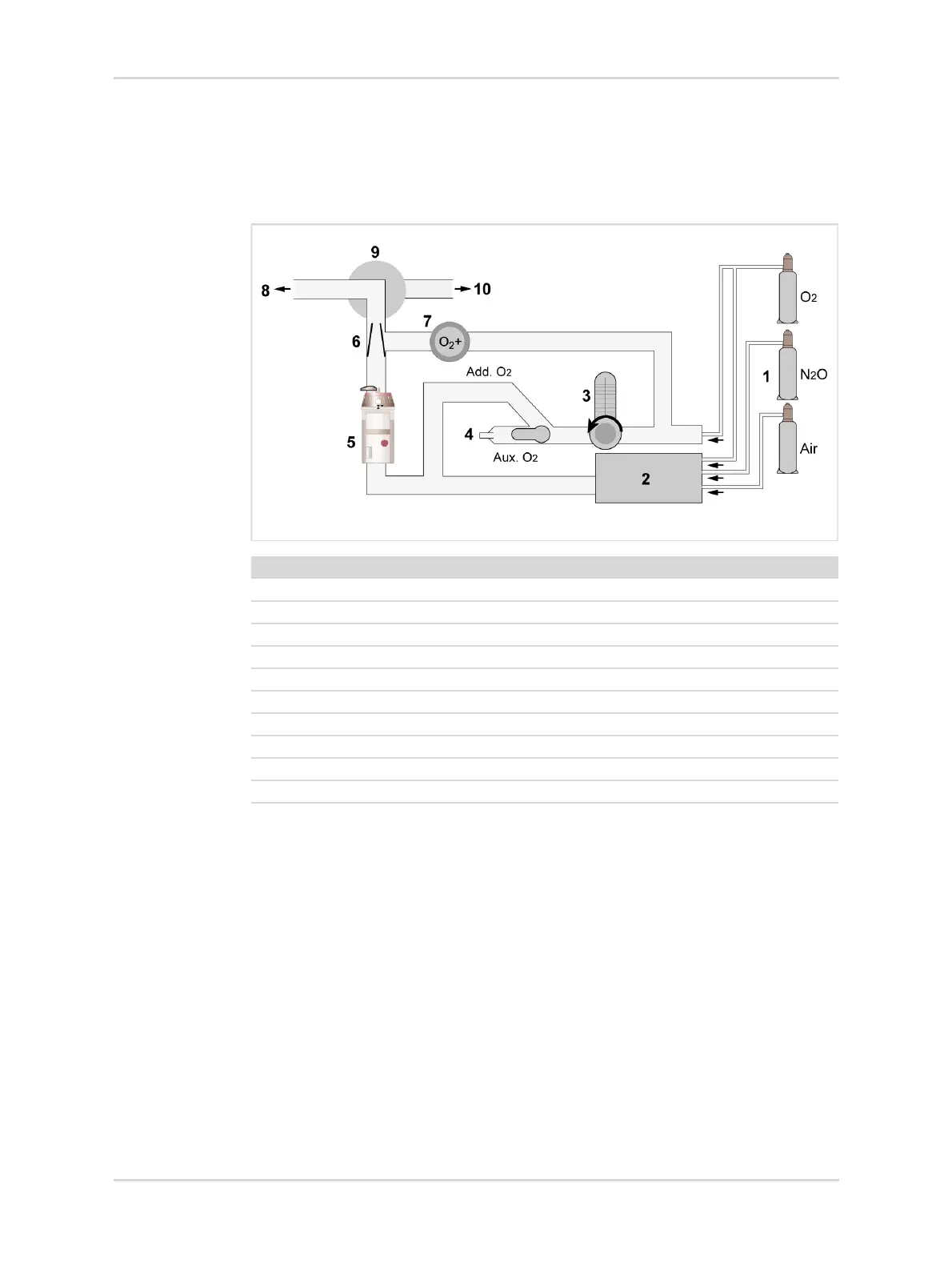

The following schematic illustration shows the gas mixer and adjacent components
in the fresh-gas flow. Some of the components shown are available as an option or
only with certain device equipment.
36484
No. Designation
1 Gas supply (central supply or gas cylinders)
2Gas mixer
3O
2 flowmeter
4O
2 switch
5 Vaporizer
6Ejector
7O
2 flush
8 Breathing system
9 Switch-over valve
10 External fresh-gas outlet
