Overview
3.1.7 Rear
3.1.7.1 Equipment with screw connections for standing gas cylinders

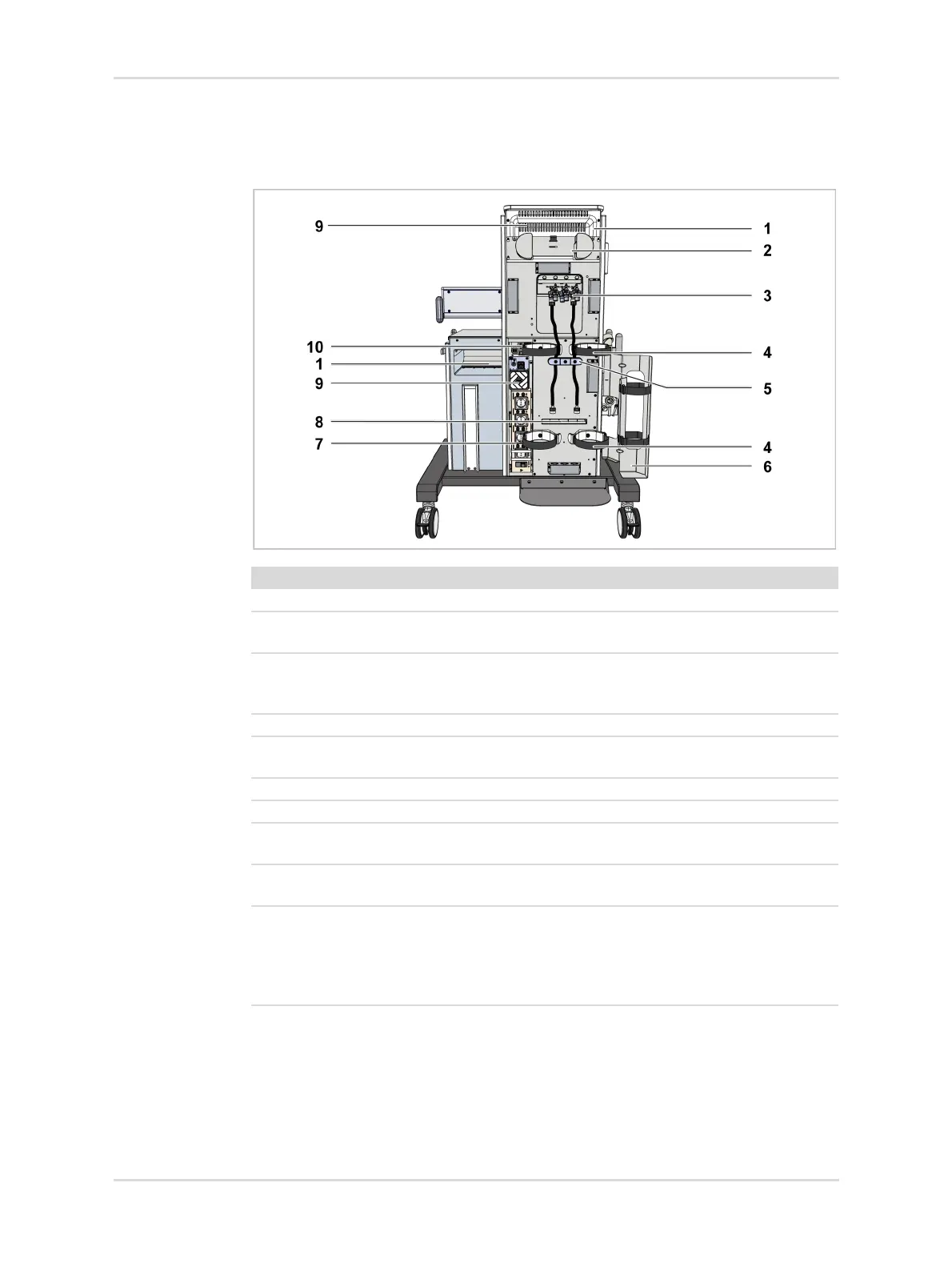

49321
No. Designation Description
1 Storage compartment Can be used as storage space.
2 Holder for hoses and cables Used for storing and winding up central sup-
ply hoses and cables.
3 Gas supply block Provides connectors for gases from the
central gas supply system and for gas cylin-
ders.
4 Gas cylinder holder Secures the gas cylinders.
5 Strain relief for compressed
gas hoses
Protects the compressed gas hoses from
loosening inadvertently.
6 Gas cylinder park holder Can hold an additional gas cylinder.
7 Auxiliary power sockets Allow other devices to be connected.
8 Vent Discharges warmed air from the device into
the environment.
9 Ventilation slot Feeds ambient air to the device for ventila-
tion.
10 Connectors Provides connectors for power cable,
potential equalization, and interfaces. Used
for data exchange between external
devices, additional components, and net-
works.
