30 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Overview

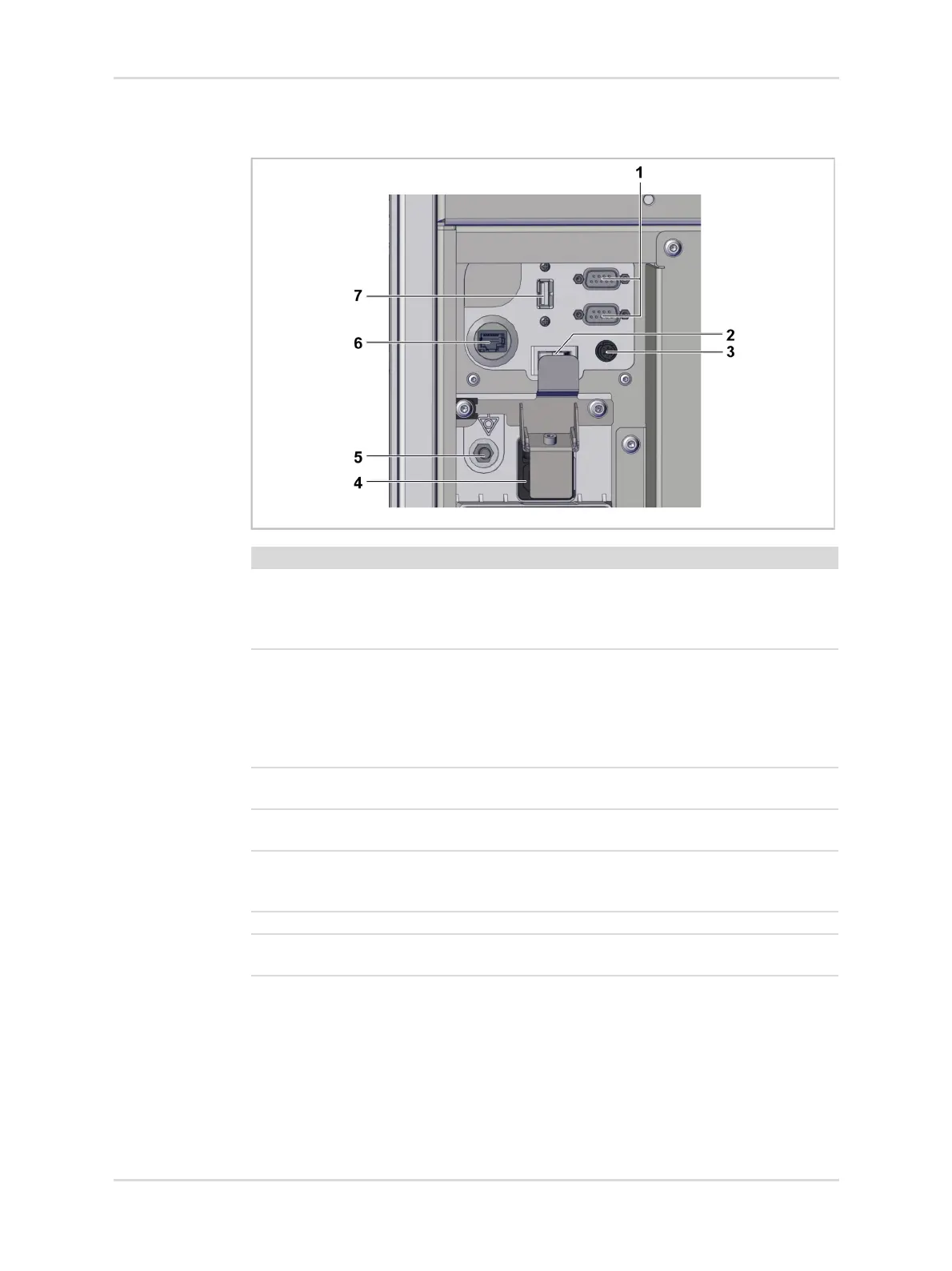

3.1.8 Connectors
36474
No. Designation Description
1 Serial port (COM 1 and
COM 2)
This serial port (RS232) supports the MEDI-
BUS.X protocol for data exchange between
the anesthesia machine and external
devices.
2 Main switch Turns the device off and minimizes the cur-
rent consumption when the power plug is
pulled out. To be used when the device is to
be disconnected from the power supply for
longer than 2 weeks and during service
activities.
3 Connector for workplace light Used for connecting an external workplace
light.
4 Power inlet (connector for
power cable)
Used to connect the device to the mains
power supply.
5 Potential equalization pin Used for connecting a potential equalization
cable. This will minimize differences in elec-
trical potential.
6 Network port Enables data transfer within an IT network.
7 USB port Used to transfer data to a USB mass stor-
age device.
To Next Page
