334 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Annex
Advanced Cylinder Support
Identifies N
2O cylinders.
The color code conforms to the locally applicable standard.
Identifies O
2 cylinders.
The color code conforms to the locally applicable standard.
Identifies Air cylinders.
The color code conforms to the locally applicable standard.
Maintain the correct minimum distance between electrical con-
nectors and gas cylinders, see product label on the device.
Electrical connector on the device
When connecting auxiliary devices, be aware of the leakage
current.
Observe chapters "Assembly and preparation" and "Technical
data".
Gas outlet
Gas inlet
Manually screw or unscrew the pneumatic connection nozzles
into/from the breathing system mount. The corresponding posi-
tions are indicated by arrows on the breathing system mount.
For further information, please refer to the reprocessing instruc-
tions supplied with the product.
Display on the total flow tube indicating the cumulative value of
the individual flows
Do not use this device in the vicinity of MRI scanners.
Example representation of the weight distribution of the nominal
weight and the maximum total weight, see "Technical data".
Weight: Main device
Weight: Load
Do not place or attach any weight.
Activate backup manual mode.
Switch to "Add. O
2".

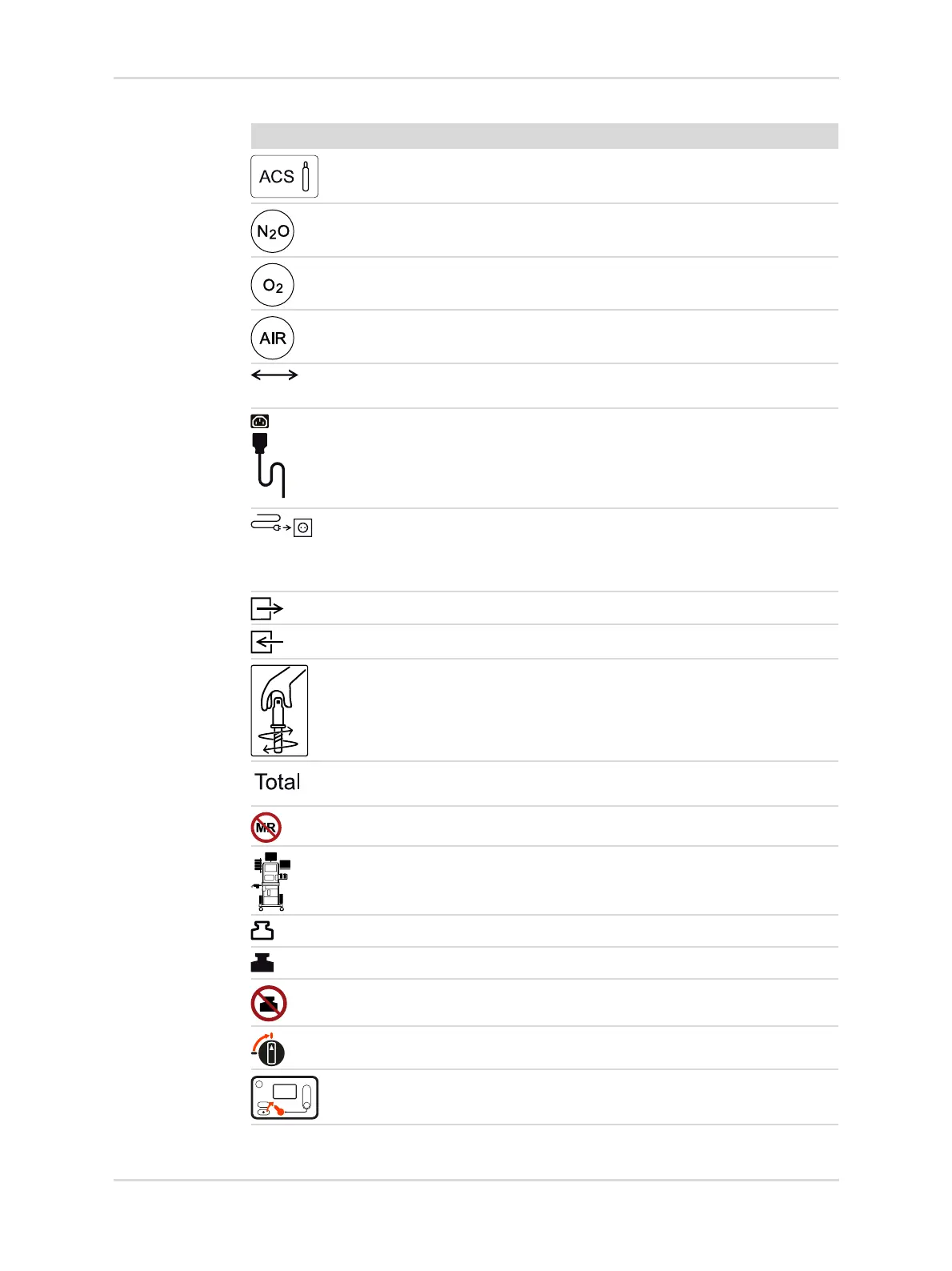

Symbol Explanation
