Assembly and preparation

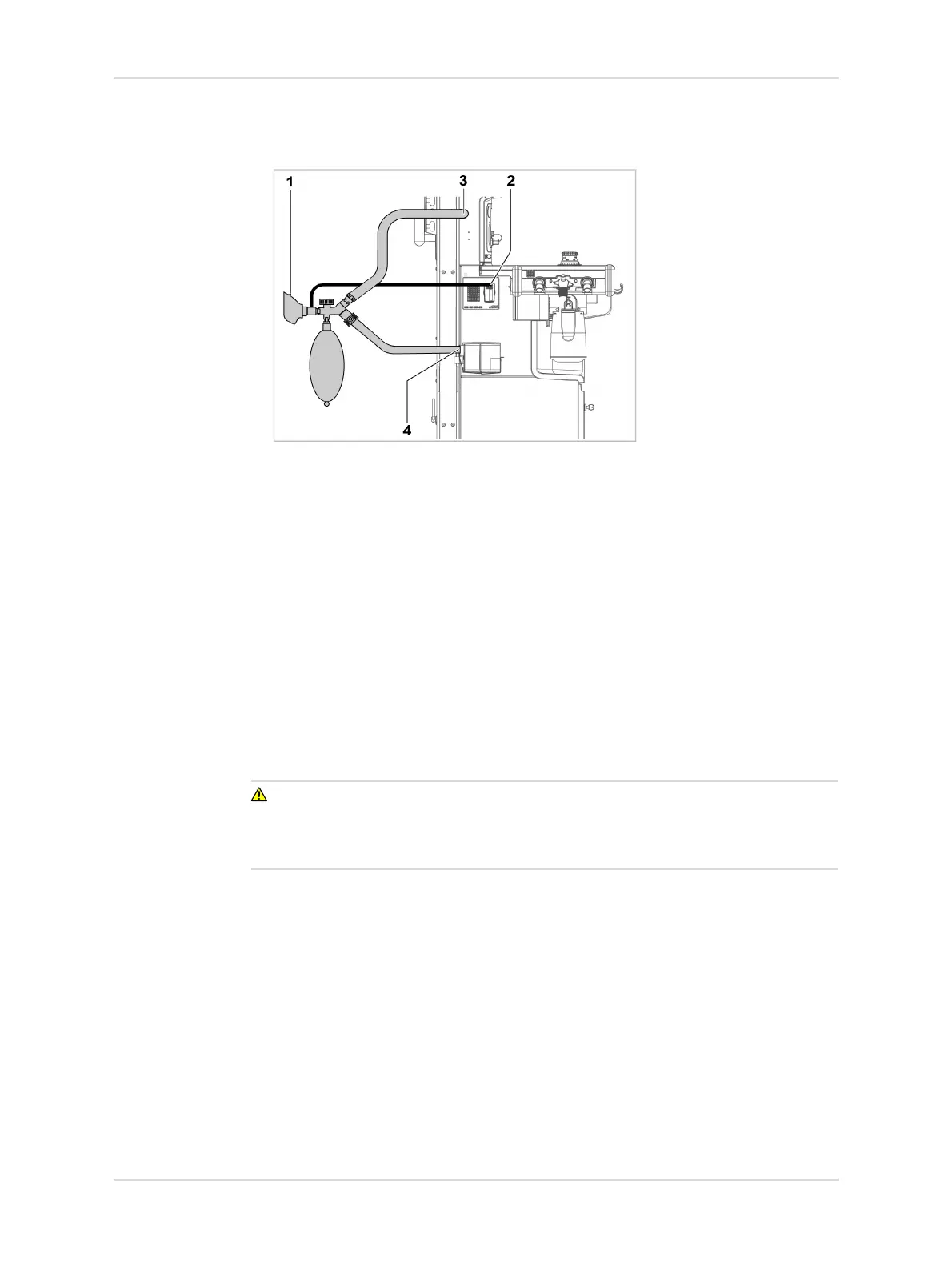

2. Screw the sample line securely to the mask (1) on the non-rebreathing system
and to the water trap (2).
For masks without a connector for the sample line, optionally proceed as
follows:
● Place the T-piece with a T-piece filter directly on the elbow. Screw the sample
line firmly onto the T-piece filter. The part numbers for the T-piece and the
T-piece filter are listed in the list of accessories.
● If necessary, connect the sample line to a filter on the Y-piece.
Ensure the correct course of the sample line. Do not use adapters.
3. Connect the fresh-gas hose of the non-rebreathing system to the external fresh-
gas outlet (3).
4. Remove the sealing plug from the inlet nozzle (4) on the AGS.
5. Use the transfer hose to connect the non-rebreathing system to the inlet nozzle
on the AGS (4).
After using the non-rebreathing system
1. Dismantle the non-rebreathing system and the sample line.
CAUTION
Risk due to leakage from an open AGS inlet nozzle
► To prevent contamination of the ambient air with anesthetic gases, press the
sealing plug back into the inlet nozzle after using a non-rebreathing system.
2. Seal the inlet nozzle (4) on the AGS again with a sealing plug.
