Dräger EVITA XL Pocket Guide

10 Pocket Guide Evita XL
Preparation
Installing expiratory valve, flow
sensor

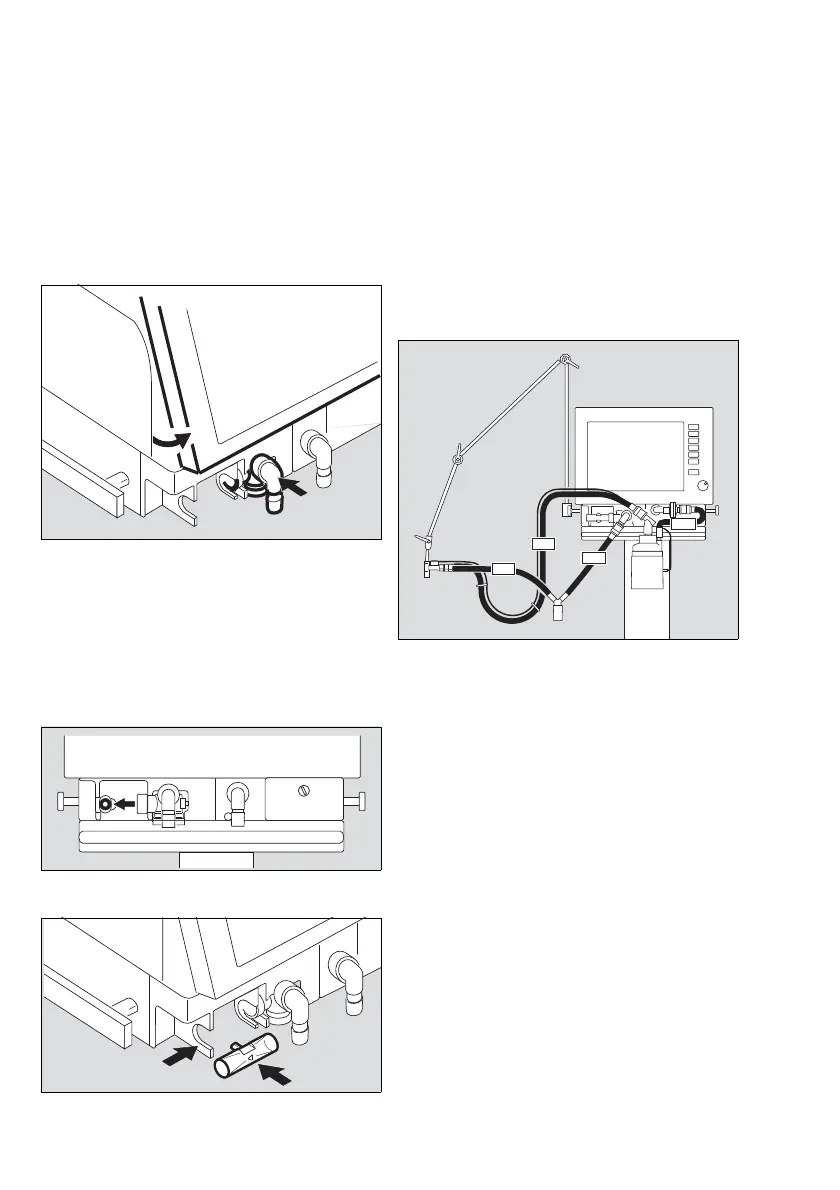

Installing the expiratory valve
1 Press down the segments on the right and left and
tilt the control panel (A) upwards.
2 Push expiratory valve (B) into the mount until it
clicks into position. Check that it is properly engaged
by gently pulling on the port.
Mounting the flow sensor
1 Push connector socket (A) all the way to the left.
2 Place flow sensor (B) into its mount – with the con-
nector facing towards the device – and push into the
socket, as far as it will go.
3 Push flow sensor to the right and into the rubber lip
seal of the expiratory valve, as far as it will go.
Connecting the breathing circuit
1 Attach hinged arm (A) to the rail on the left-hand
side of the ventilator and tighten screws.
2 Connect breathing hoses of appropriate lengths to
the ports (B). Observe the required hose lengths (in-
dicated in meters).
3 Install water traps (C) in vertical position.
4 Connect Y-piece (D), with the rubber sleeve of the
Y-piece on the inspiratory side.
5 Insert the Y-piece in the opening of the hinged arm
(E).
6 Connect test lung.
007008009
A
B
A
B
501
0.6m
0.6m
0.4m
1.1m
D
Evita XL
A
B
B
C
D
E

Dräger EVITA XL Specifications

General

Type	Ventilator
Manufacturer	Dräger
Model	EVITA XL
Connectivity	RS-232, Ethernet
Modes of Ventilation	Volume Control, Pressure Control, SIMV, CPAP
Tidal Volume Range	20 to 2000 ml
Respiratory Rate	2 to 100 breaths/min
FiO2 Range	21% to 100%
Display	Color touchscreen
Power Supply	100 to 240 V, 50/60 Hz
Patient Range	Neonatal to Adult
Monitoring	Pressure, Volume, Flow, SpO2
Alarms	Apnea, High Pressure, Low Pressure
