System Overview

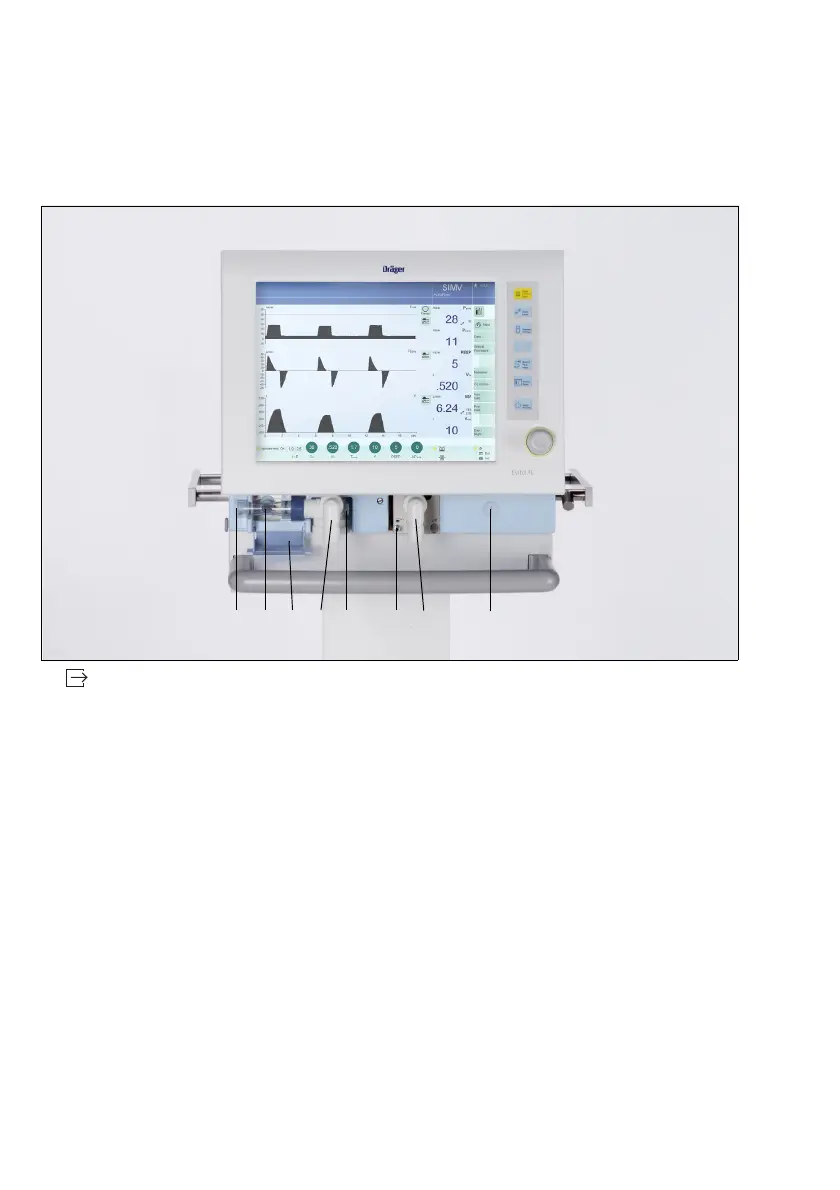

Front connections
A Gas exhaust port
(EXHAUST – NOT FOR SPIROMETERS)
B Flow sensor
C Flow sensor flap (thermal cover)
D Expiratory valve with expiratory connector port
(GAS RETURN)
E Latch for expiratory valve
F Nebulizer connection
G Inspiratory connector port
(GAS OUTPUT)
H Locking screw for protective cover
(behind it: O
2 sensor)
003
HGFEDCBA
