Pocket Guide Evita XL 21
Operation
NIV – non-invasive ventilation
(SW 6.12 or higher)
Selecting NIV
The application mode can only be changed in Standby
mode.

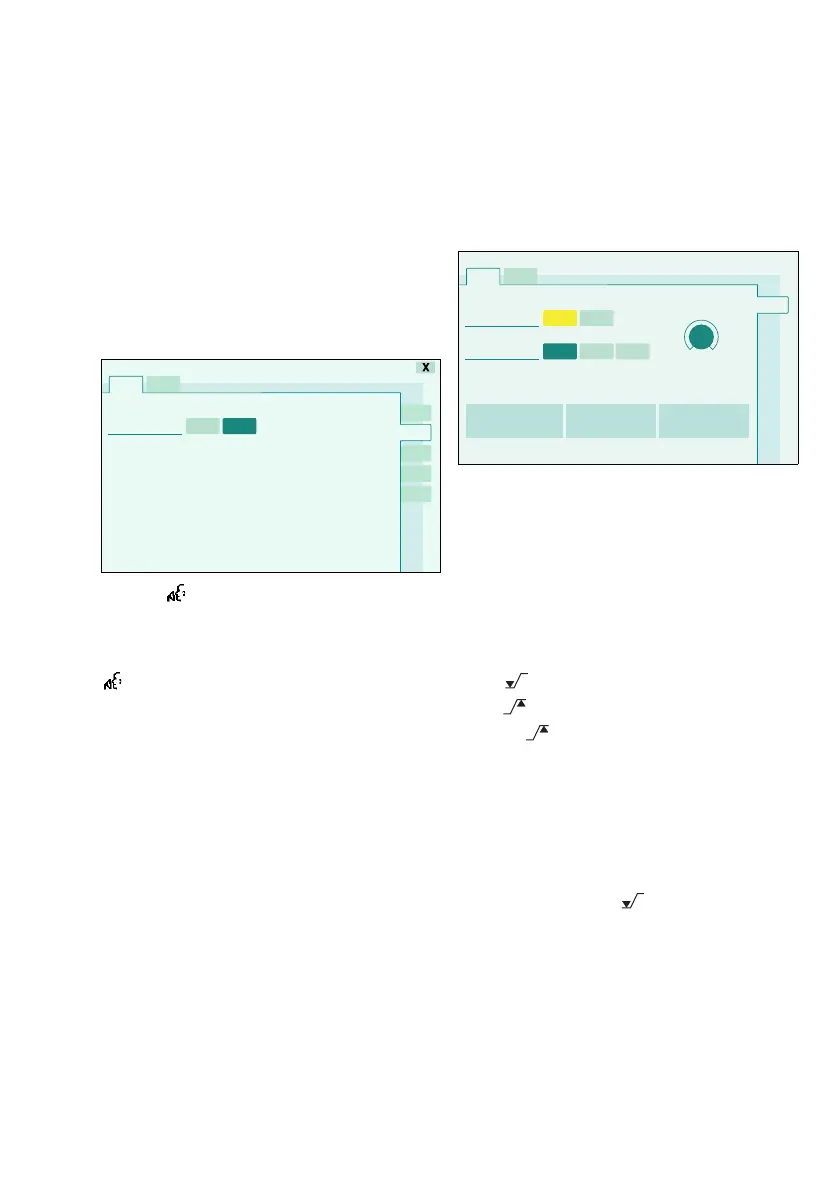

1 Touch Tube / Mask tab (A).
2 Touch
Mask (NIV) button (B).
3 Press rotary knob to confirm.
Evita XL displays the application mode in the header
bar:
Mask Ventilation
Setting ventilation for NIV
z Set ventilation mode and ventilation parameters.
Starting ventilation with NIV
Prerequisite: The Start / Standby dialog window must
be open.
z Touch Start button (A) and press rotary knob to con-
firm.
Monitoring during ventilation with NIV
In addition to the monitoring during ventilation in tube
mode, certain new limits can be set in NIV.
The following alarm limits may be deactivated in order
to avoid artifacts:
– MV , lower alarm limit for minute volume
– V
Ti , upper alarm limit for inspiratory tidal volume
– T
Apnea , upper alarm limit for apnea monitoring
If the lower alarm limit for minute volume or the upper
alarm limit for apnea monitoring is switched off, Evita XL
displays a permanent message in the header bar.
If the upper alarm limit for inspiratory tidal volume is
switched off, Evita XL displays a message in the header
bar for 15 seconds.
A time lag T
deconnect between 0 and 60 seconds can be
set for the alarm limit P
AW (airway pressure low).
NIV Plus (optional) (SW 7.0 or higher)
The following functions are additionally available with
the NIV Plus option:
– Standby Plus
– Flow reduction during disconnection
– Extended leakage compensation
027
020
