Dräger EVITA XL Pocket Guide

Pocket Guide Evita XL 5
System Overview
System Overview

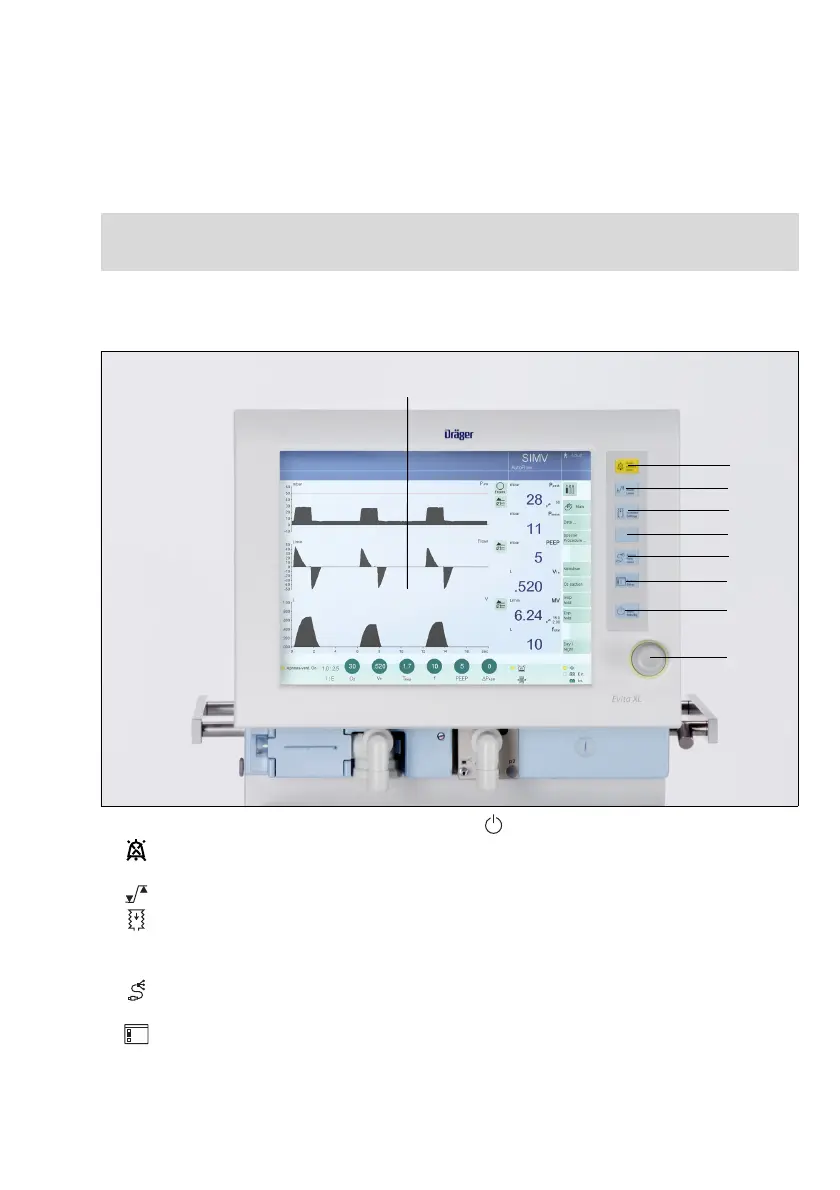

Control panel
A Touch-sensitive screen
B
Audio paused 2 min. key for suppressing the
alarm tone for two minutes
C
Alarm Limits key for setting alarm limits
D
Ventilator Settings key for setting ventilation
mode and ventilation parameters
E Unassigned key for future functions
F
Sensor Parameter key for calibrating sensors
and for switching monitoring on or off
G
System Setup key for configuring device func-
tions
H
Start/Standby key for switching between ope-
ration and Standby mode
I Rotary knob for selecting and confirming settings
NOTE
The Evita XL Pocket Guide is not a replacement or substitute for the Instructions for Use.
Any use of the device requires full understanding and strict observation of the Instructions for Use.
002
A
B
C
D
E
F
G
H
I
1
2
3

Dräger EVITA XL Specifications

General

Type	Ventilator
Manufacturer	Dräger
Model	EVITA XL
Connectivity	RS-232, Ethernet
Modes of Ventilation	Volume Control, Pressure Control, SIMV, CPAP
Tidal Volume Range	20 to 2000 ml
Respiratory Rate	2 to 100 breaths/min
FiO2 Range	21% to 100%
Display	Color touchscreen
Power Supply	100 to 240 V, 50/60 Hz
Patient Range	Neonatal to Adult
Monitoring	Pressure, Volume, Flow, SpO2
Alarms	Apnea, High Pressure, Low Pressure
