Dräger EVITA XL Pocket Guide

Pocket Guide Evita XL 7
System Overview

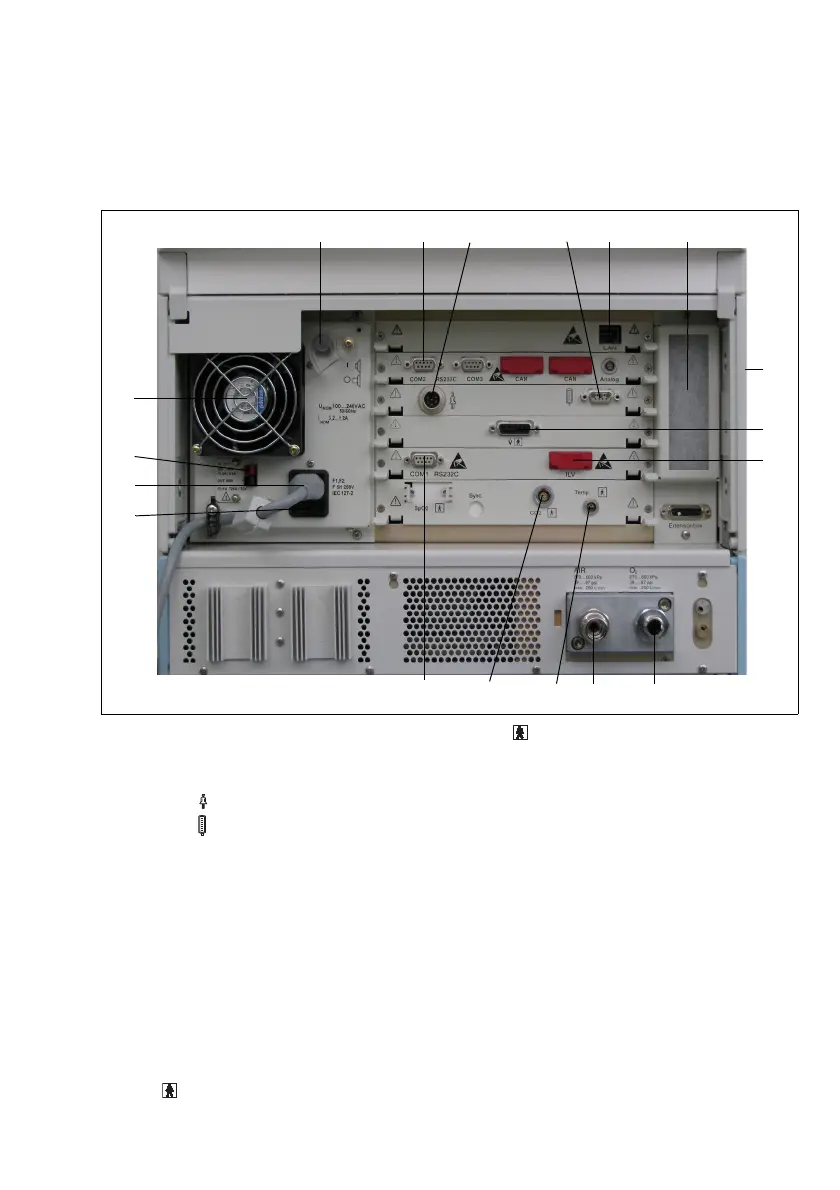

Back panel
A Power switch with protective cover
B COM 2, COM 3 ports for RS 232, 2 CAN interfaces,
and analog interface (optional)
C Connection for nurse call (optional)
D Connection for Remote Pad (optional)
E LAN connection for web application server of
SmartCare
F Cooling-air filter
G Option overview plate (not visible) on the right-hand
side panel
H Connection
for neonatal flow sensor (optional)
I ILV socket for the connecting cable for independent
lung ventilation with two ventilators
J Connection for oxygen (O
2)
K Connection for medical compressed air (AIR)
L Temp
socket for temperature sensor (optional)
M CO
2 socket for CO2 sensor (optional)
N COM 1 RS 232C port for RS 232 interface, e. g., for
monitoring system
O AC fuses
P Connector for power cable (AC)
Q DC socket
R Cooling fan
004
A BC D F
H
I
JKLMN
O
P
Q
R
G
E
V
.

Dräger EVITA XL Specifications

General

Type	Ventilator
Manufacturer	Dräger
Model	EVITA XL
Connectivity	RS-232, Ethernet
Modes of Ventilation	Volume Control, Pressure Control, SIMV, CPAP
Tidal Volume Range	20 to 2000 ml
Respiratory Rate	2 to 100 breaths/min
FiO2 Range	21% to 100%
Display	Color touchscreen
Power Supply	100 to 240 V, 50/60 Hz
Patient Range	Neonatal to Adult
Monitoring	Pressure, Volume, Flow, SpO2
Alarms	Apnea, High Pressure, Low Pressure
