Displaying waveforms
The following real-time waveforms can be displayed:
–P
AW (t)
– Flow (t)
– Volume (t)
–etCO
2 (t) (optional)

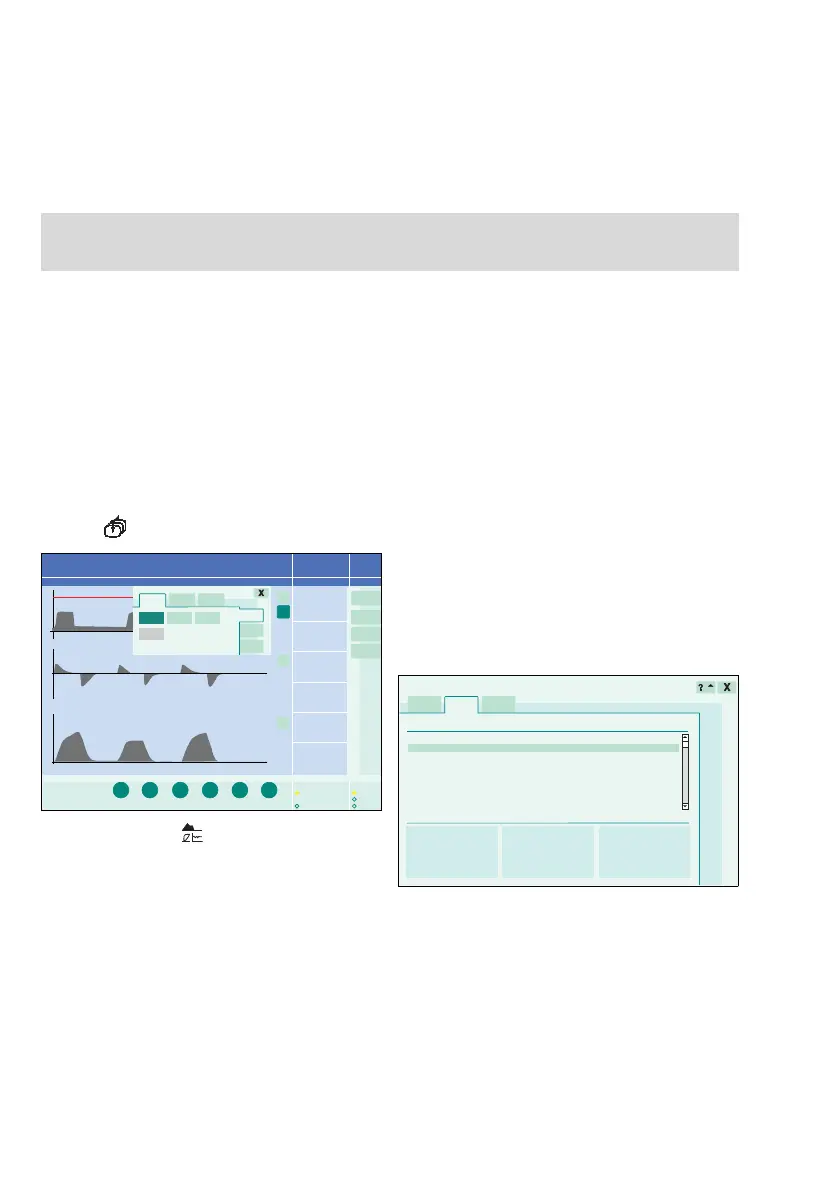

Selecting real-time waveforms
1 Touch
Main button in the main menu bar.
2 Touch the relevant button (A).
Evita XL opens a dialog window, the Curves page (B) is
selected by default.
Selecting other real-time waveforms
1 Touch Curve only tab (C).
2 Touch button for the parameter (D) to be displayed
as a real-time waveform.
Evita XL displays the real-time waveform for this para-
meter. The dialog window is closed automatically.
In the same way it is possible to select:
–trends
– short trends
– recruitment trends
–loops
– big loops.
Displaying the logbook
1 Touch Data ... button in the main menu bar.
2 Touch Logbook tab (A).
NOTE
The Evita XL Pocket Guide is not a replacement or substitute for the Instructions for Use.
Any use of the device requires full understanding and strict observation of the Instructions for Use.
