Dräger EVITA XL Pocket Guide

Pocket Guide Evita XL 11
Preparation
Switching on Evita XL

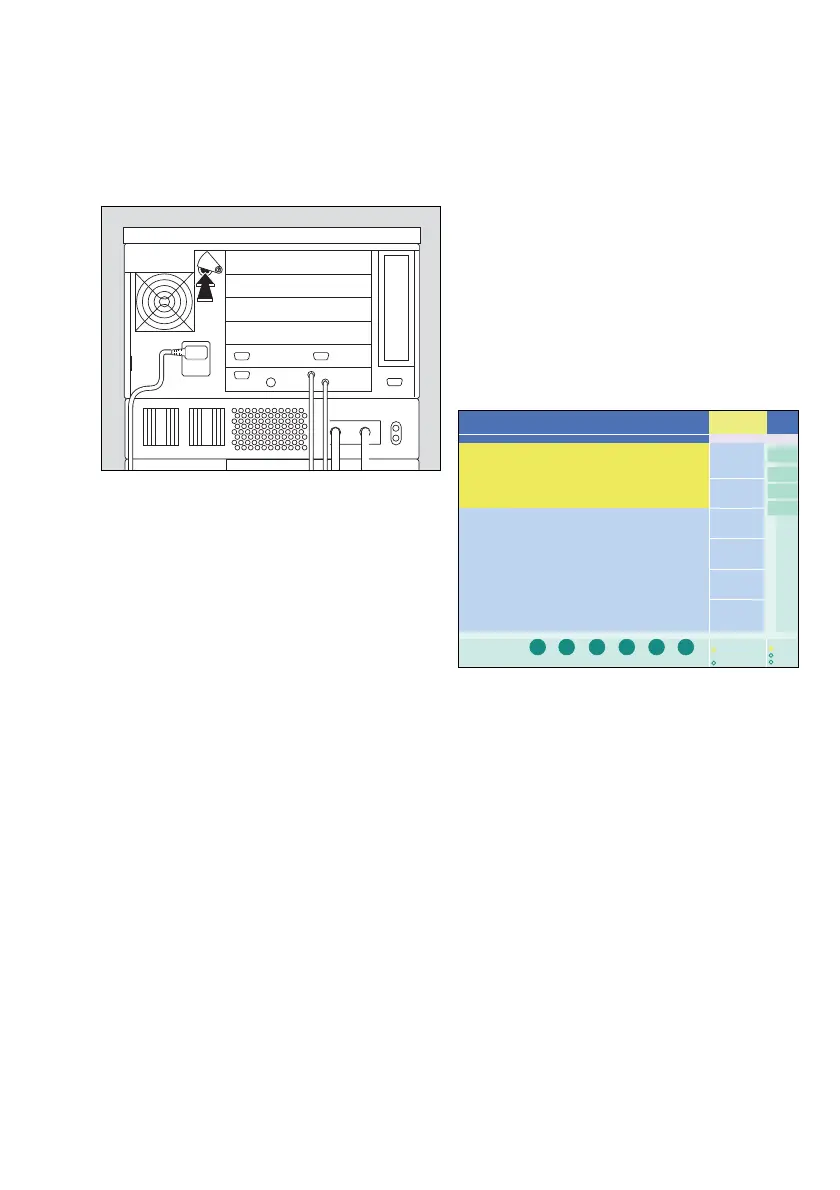

1 Press On/Off switch (A) until it engages.
The protective cover pivots down over the On/Off switch
to protect against inadvertent switching off.
The Selftest screen with version no., date, and part no.
of the software is now displayed.
The Selftest is performed automatically.
2 Wait for this test to be completed.
Evita XL then displays the "Start" screen.
Evita XL will start ventilation with the pre-configured set-
tings unless values are changed or Standby mode is ac-
tivated within 30 seconds.
Activating Standby mode
1 Touch Standby button within 30 seconds and press
rotary knob to confirm.
The alarm message Standby activated !!! is displayed
in the header bar.
To acknowledge this message:
2 Touch Alarm Reset button to the right of the mes-
sage and press rotary knob to confirm.
Evita XL is in Standby mode:
Standby is displayed in the header bar of the screen
(A). Standby is displayed on the screen (B)
010
A
029
A
B

Dräger EVITA XL Specifications

General

Type	Ventilator
Manufacturer	Dräger
Model	EVITA XL
Connectivity	RS-232, Ethernet
Modes of Ventilation	Volume Control, Pressure Control, SIMV, CPAP
Tidal Volume Range	20 to 2000 ml
Respiratory Rate	2 to 100 breaths/min
FiO2 Range	21% to 100%
Display	Color touchscreen
Power Supply	100 to 240 V, 50/60 Hz
Patient Range	Neonatal to Adult
Monitoring	Pressure, Volume, Flow, SpO2
Alarms	Apnea, High Pressure, Low Pressure
