Operating Concept
Operating Concept

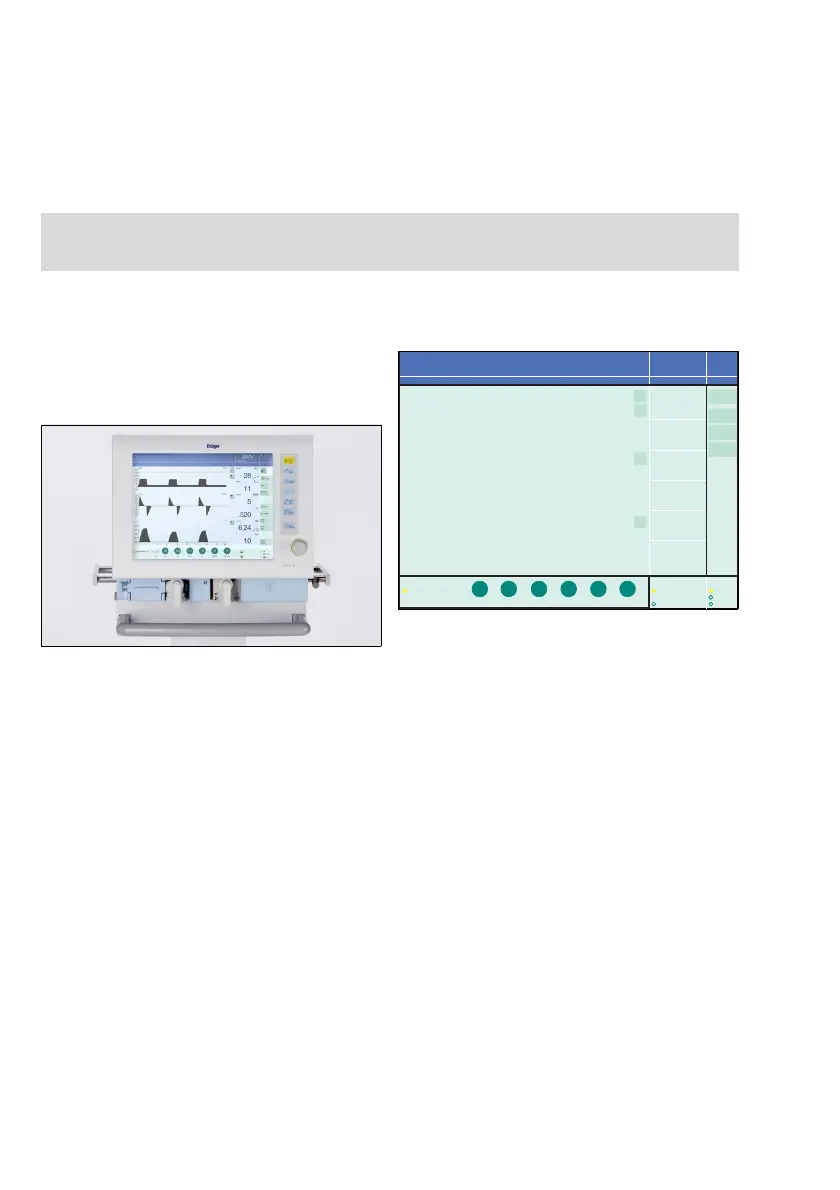

Control panel
The control panel is characterized by a 15" touch
screen, its clear layout and easy operation.
Its main elements are:
A Large screen with all the information and controls
needed for ventilation.
B Fixed function keys beside the screen - for rapid ac-
cess to major functions.
C Rotary knob for selecting and confirming settings on
the screen.
Main screen
A Header bar with the following fields:
– Alarms, messages, and instructions for the ope-
rator
– Therapy status: Therapy type (ventilation or O
2
Therapy), ventilation mode, and additional set-
tings
– Patient category
B Main menu bar with buttons for opening dialog win-
dows and activating functions
C Power supply display
D Field for device status with type of humidification
E Therapy bar with therapy controls for the ventilation
parameters of the active ventilation mode and its ad-
ditional settings
F Monitoring area with waveforms, loops, trends, and
measured values
NOTE
TheEvita XL Pocket Guide is not a replacement or substitute for the Instructions for Use.
Any use of the device requires full understanding and strict observation of the Instructions for Use.
