Transient Limit, continued
Procedure to
record transient
disturbance
(continued)
Continued on next page
Action... Result...

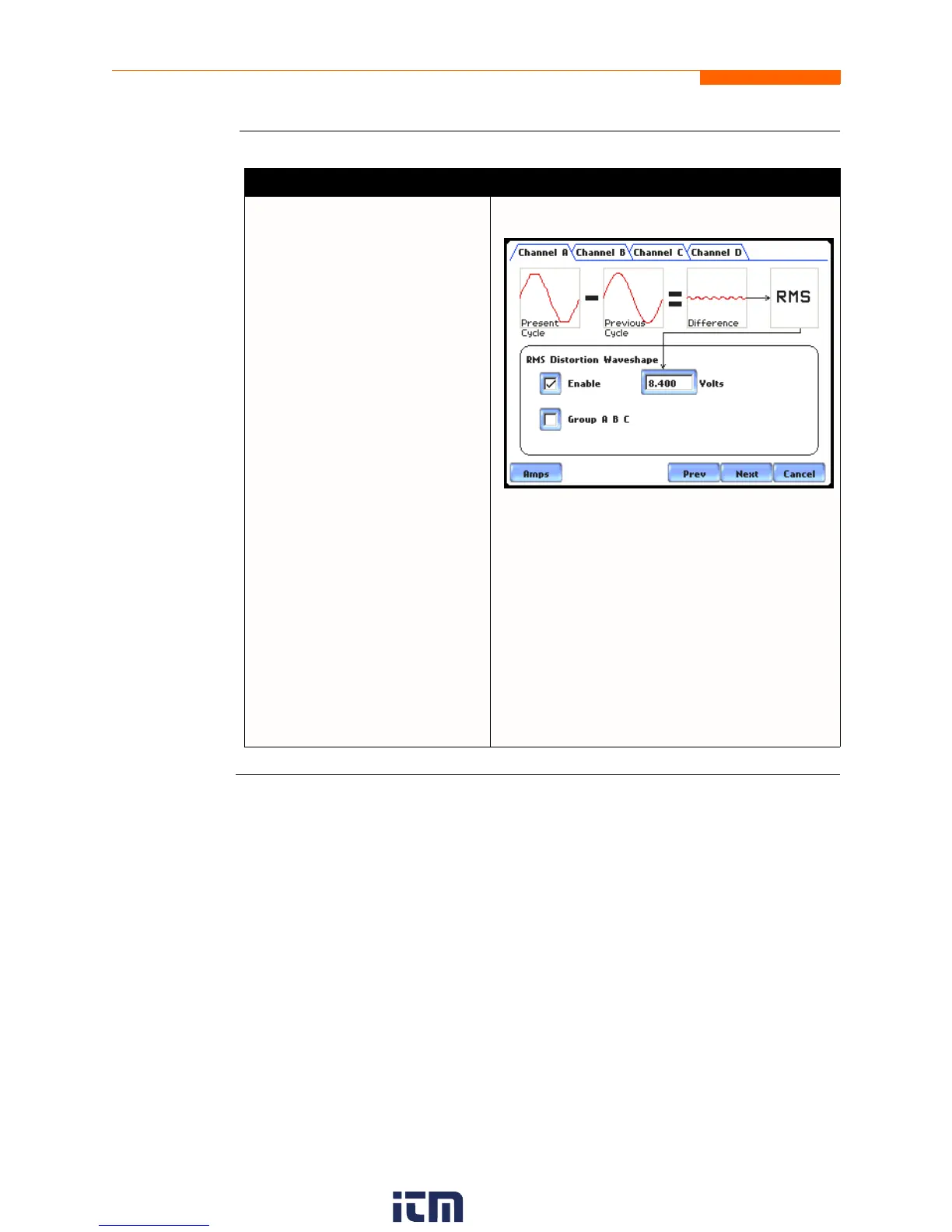

STEP 3: 4400 allows users to set
rms distortion waveshape limit.
• Press the limit field to change
limit. Use the keypad to enter
the treshold limit beyond which
rms voltage variations occur.
• Enable toggles whether this
limit is enabled or disabled.
• Amps toggles between Volts
and Amps.
•Press Group A B C to set
identical rms threshold value
for Channels A, B and C.
•Press Next to set the transient
waveform capture pre- and
post-cycles setup. Proceed to
Step 4 on page 6-7.
•Press Prev to return to the
cycle-to-cycle waveshape
screen.
•Press Cancel to retain previous
rms limit and return to
Advanced Options menu.
