Panel Operation, continued
Parameter data
plot
The following procedure describes how to view parameter details in the annunciator
panel.
Continued on next page
Action... Result...

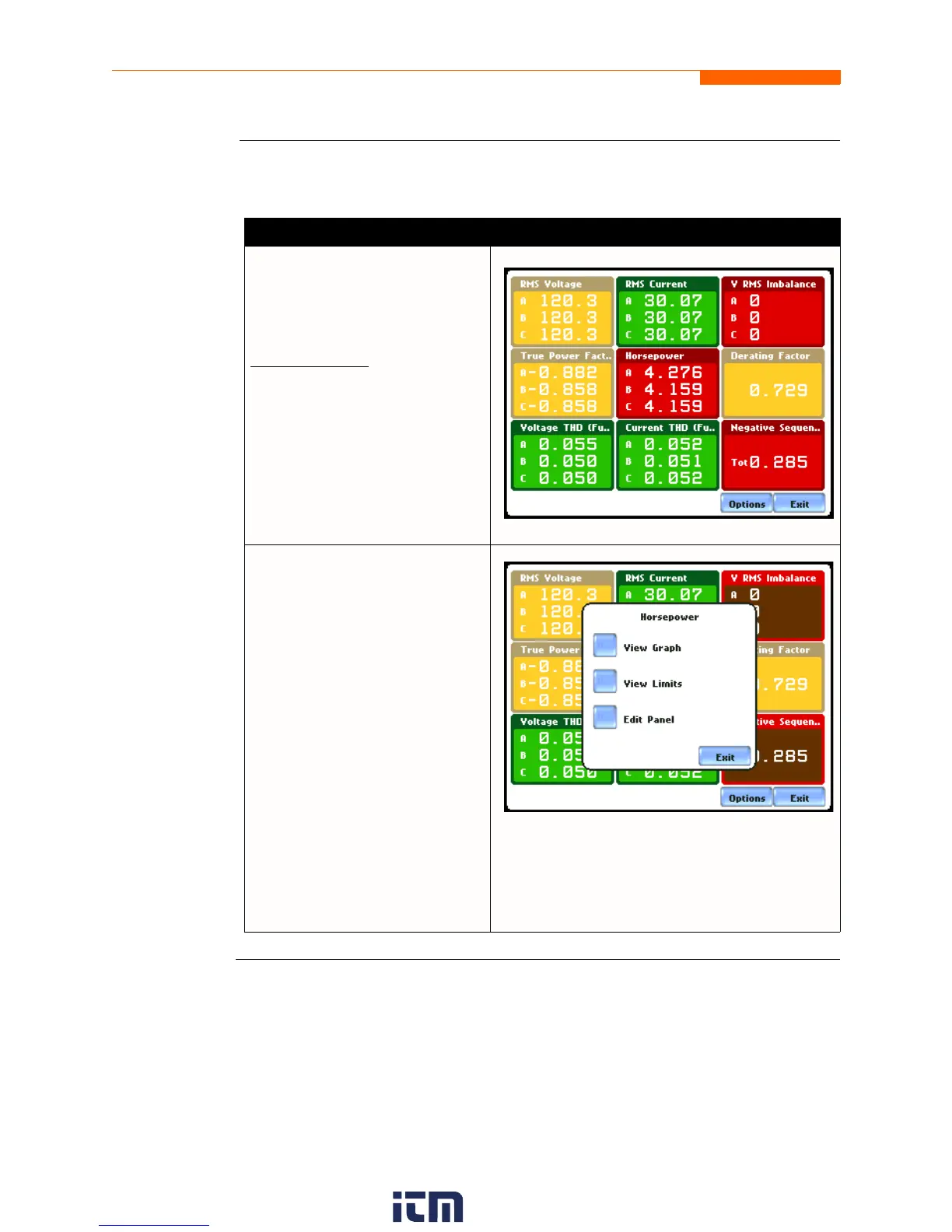

STEP 1: From the Home screen
press Reports. Select Status to
display the summary report via
the annunciator panel.
FOR EXAMPLE
:
The summary report type
described here is for Motor
Quality setup. Click on V RMS
Imbalance to view the parameter
in detail.Proceed to Step 2.
MARK608
STEP 2: Press to select the
parameter that you want to view
in detail.
•Press View Graph to display
the data plot for V RMS
Imbalance. Proceed to page 8-
21.
•Press View Limits to display
the threshold values crossed.
Proceed to page 8-22.
•Press Edit Panel to display the
tab function where you can
disable/enable parameters/
channels to plot. Proceed to
page 8-22.
MARK609
NOTE: An activity indicator periodically appears
in the middle of the screen signifying that data
monitoring is on and the unit is actively
characterizing events and searching database.
