Draytek Vigor2120 Series User Manual

Vigor2120 Series User’s Guide
151

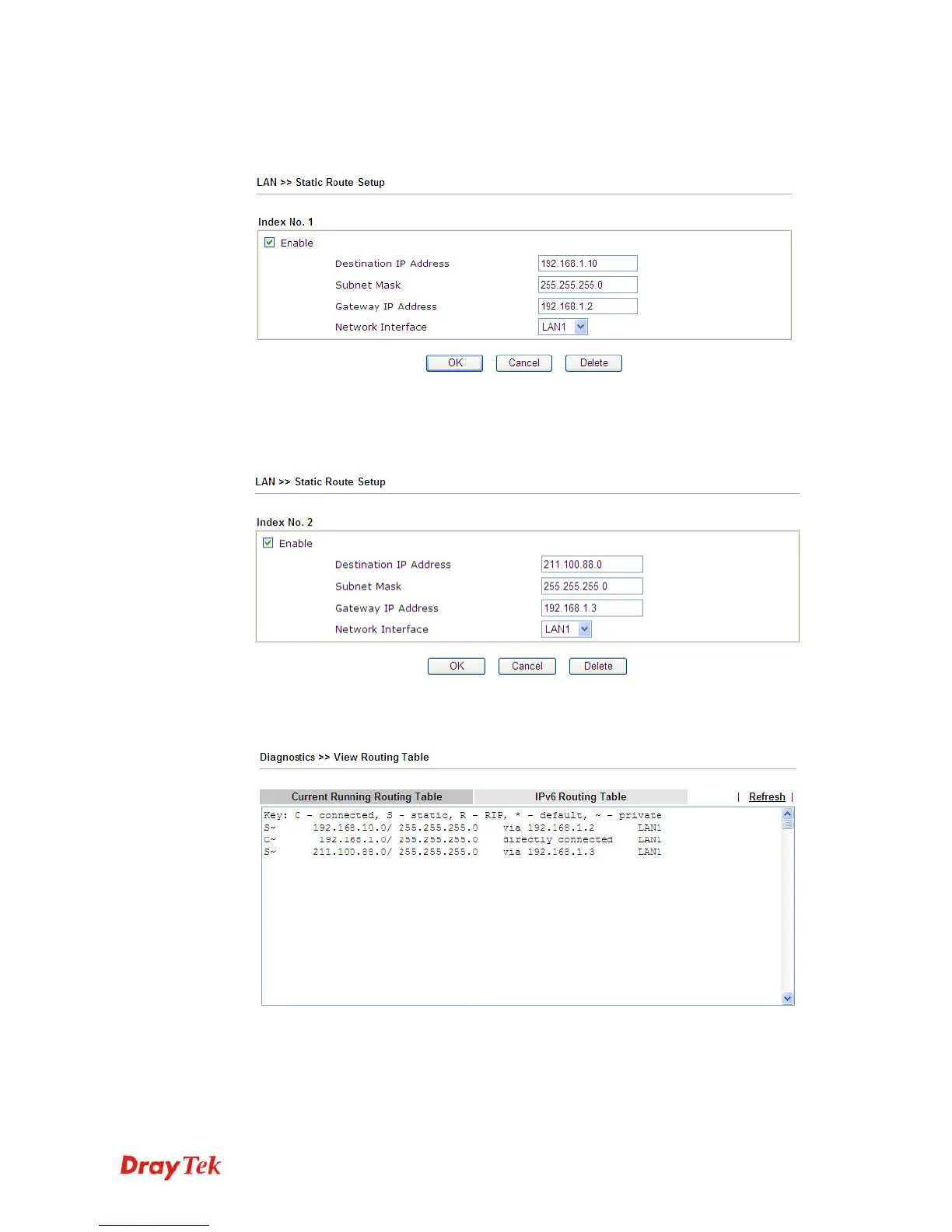

2. Click the LAN >> Static Route and click on the Index Number 1. Check the Enable
box. Please add a static route as shown below, which regulates all packets destined to
192.168.10.0 will be forwarded to 192.168.1.2. Click OK.
3. Return to Static Route Setup page. Click on another Index Number to add another
static route as show below, which regulates all packets destined to 211.100.88.0 will be
forwarded to 192.168.1.3. Click OK.
4. Go to Diagnostics and choose Routing Table to verify current routing table.

Draytek Vigor2120 Series Specifications

General

Brand	Draytek
Model	Vigor2120 Series
Category	Network Router
Language	English
