Vigor2120 Series User’s Guide
239
However, each node may take different attitude toward packets with high priority marking
since it may bind with the business deal of SLA among different DS domain owners. It’s not
easy to achieve deterministic and consistent high-priority QoS traffic throughout the whole
network with merely Vigor router’s effort.
In the Bandwidth Management menu, click Quality of Service to open the web page.
Available settings are explained as follows:
Item Description
General Setup
Index – Display the WAN interface number that you can edit.
Status – Display if the WAN interface is available for such
function or not.
Bandwidth – Display the inbound and outbound bandwidth
setting for the WAN interface.
Direction – Display which direction that such function will
influence.
Class 1/Class2/Class 3/Others – Display the bandwidth
percentage for each class.
UDP Bandwidth Control –Display the UDP bandwidth
control is enabled or not.
Online Statistics –Display an online statistics for quality of
service for your reference
Setup – Allow to configure general QoS setting for WAN
interface.
Class Rule
Index – Display the class number that you can edit.
Name – Display the name of the class.
Rule – Allow to configure detailed settings for the selected
Class.
Service Type – Allow to configure detailed settings for the
service type.

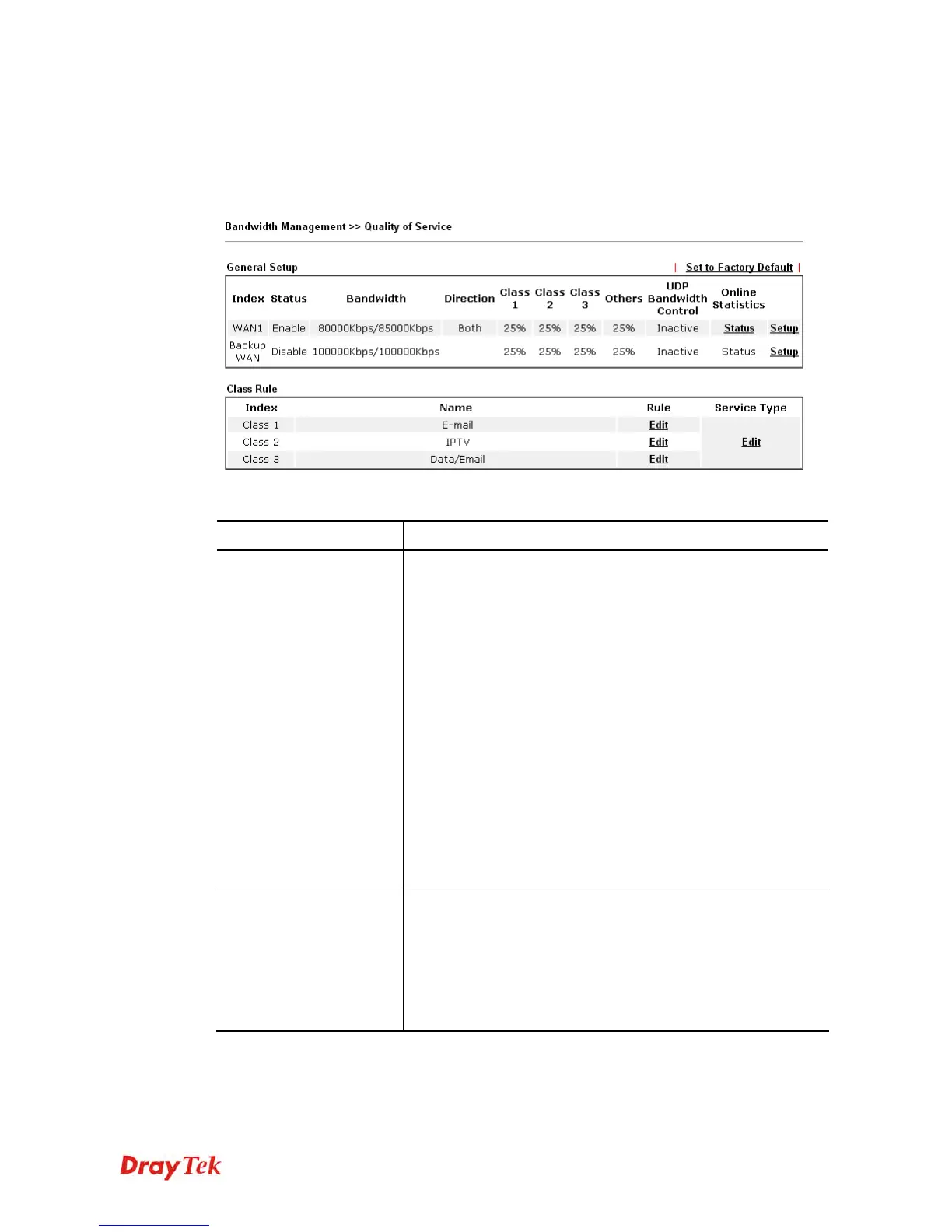

This page displays the QoS settings result of the WAN interface. Click the Setup link to
access into next page for the general setup of WAN interface. As to class rule, simply click the
Edit link to access into next for configuration.
To Next Page
