Vigor2120 Series User’s Guide
308
Security

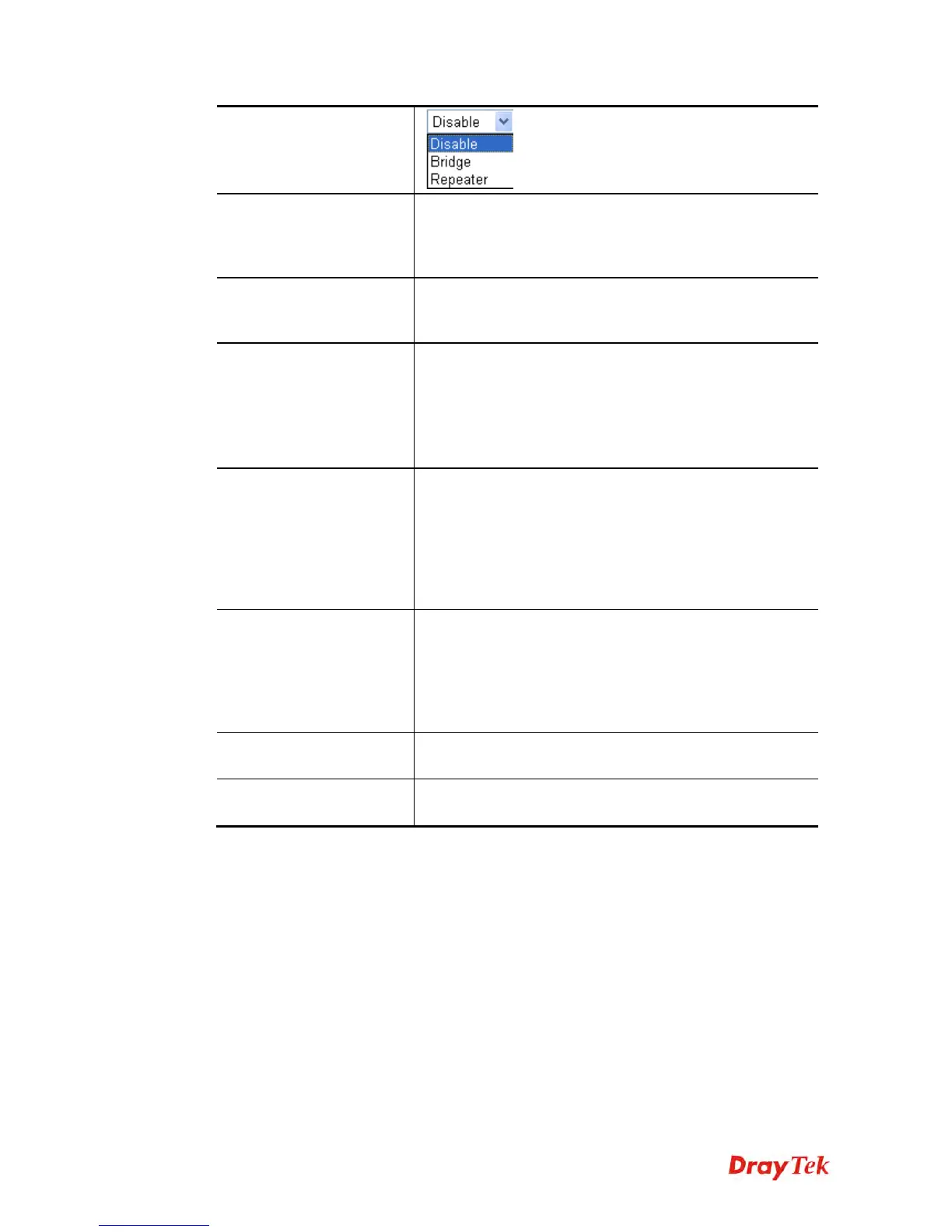

There are three types for security, Disable, WEP and
Pre-shared key. The setting you choose here will make the
following WEP or Pre-shared key field valid or not. Choose
one of the types for the router.
WEP
Check this box to use the same key set in Security Settings
page. If you did not set any key in Security Settings page,
this check box will be dimmed.
Pre-shared Key
Type – There are some types for you to choose. WPA and
WPA2 are used for WDS devices (e.g.2120n-plus wireless
router, you can set the encryption mode as WPA or WPA2
to establish your WDS system between AP and the router.
Key - Type 8 ~ 63 ASCII characters or 64 hexadecimal
digits leading by “0x”.
Bridge
If you choose Bridge as the connecting mode, please type in
the peer MAC address in these fields. Four peer MAC
addresses are allowed to be entered in this page at one time.
Yet please disable the unused link to get better
performance. If you want to invoke the peer MAC address,
remember to check Enable box in the front of the MAC
address after typing.
Repeater
If you choose Repeater as the connecting mode, please type
in the peer MAC address in these fields. Four peer MAC
addresses are allowed to be entered in this page at one time.
Similarly, if you want to invoke the peer MAC address,
remember to check Enable box in the front of the MAC
address after typing.
Access Point Function
Click Enable to make this router serve as an access point;
click Disable to cancel this function.
Status
It allows user to send “hello” message to peers. Yet, it is
valid only when the peer also supports this function.
After finishing all the settings here, please click OK to save the configuration.
