Hardware Installation (cont.)

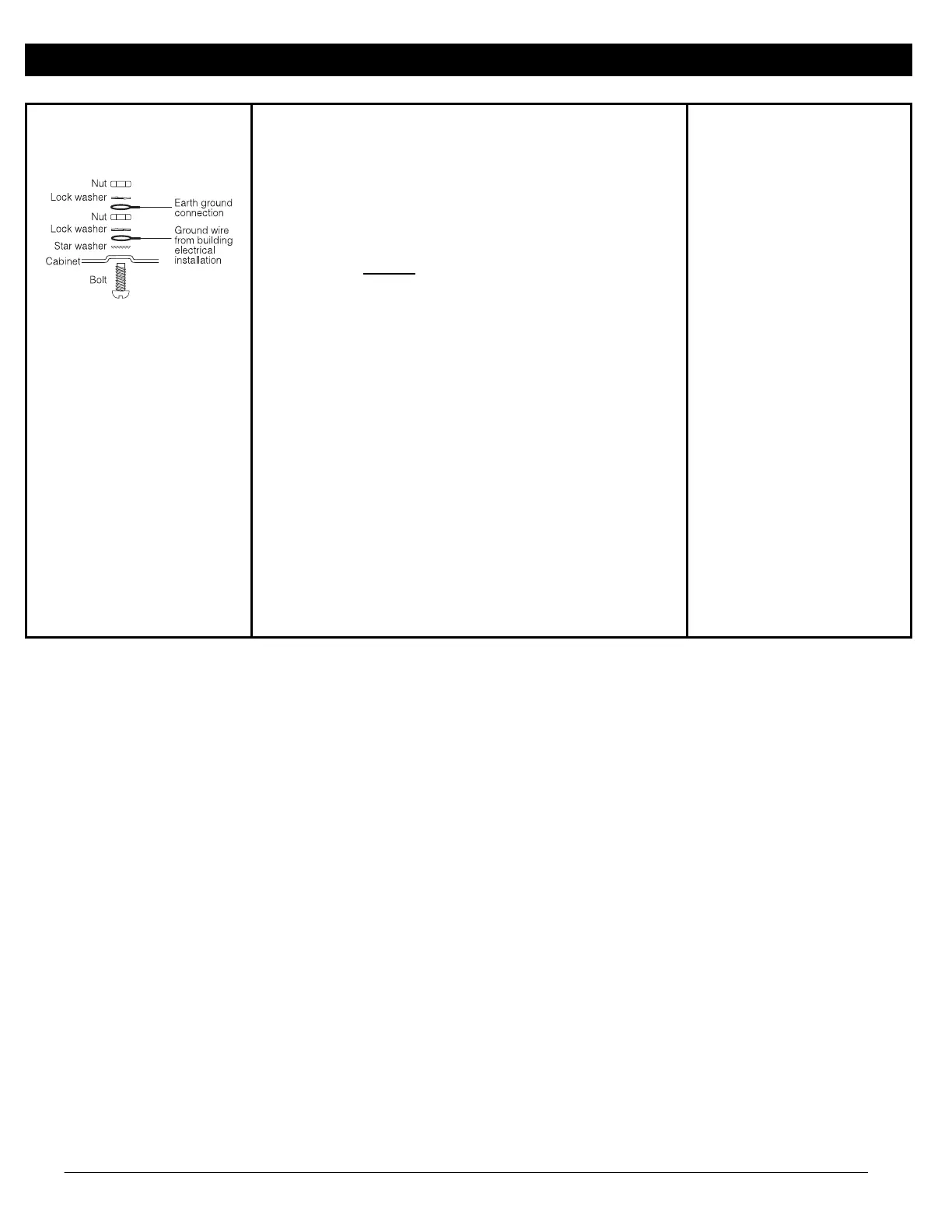

7. Ground 8. Battery 9 . A C W i r i n g
Install as indicated or equivalent
A sealed, rechargeable, lead acid battery or gel type battery is required
to meet UL requirements for power standby times.
NOTE: UL Residential/Commercial Burglary installations require 4 hours
power standby time.
NOTE: UL/ULC Residential Fire & Home Care installations require 24-hr
power standby. ULC Commercial Burglary and Fire monitoring installa-
tions require 24-hr power standby.
Standby Battery Guide
Battery Charging Current: 400 mA
Standby
Batt Size 4Hr 24Hr
4Ah 700mA -------
7Ah 700mA 180mA
14Ah 700mA 470mA
In accordance with EN5013-1 Standard for a Power Supply Type A rated for
Grade 2 Systems, battery standby time required in the event of prime power
source failure shall be 12hrs (min.). The table below is a guide indicating
maximum loads for the standby times shown. Load includes AUX+/-, Keybus
(Red, Blk), and PGM 1-4 and modules, it does not include a battery safety
margin.
Battery Charging Current: 400mA (4Ah, 7Ah batteries)
Batt Size 4Hr 12Hr 24Hr 36Hr
4Ah 500mA 220mA - -
7Ah 500mA 480mA 150mA -
14Ah - 500mA 480mA 280mA
24Ah - - 500mA 500mA
Program Section [701] Opt[7] to ON, if 14AH or 24AH battery is used.
NOTE: Replace batteries every 3-5 years, If two batteries are required to
meet the standby time, use DSC Enclosure Model Power UC1. Battery
capacity will deteriorate with age and number of charge/discharge cycles.
UL Installations
Primary: 120VAC/60Hz./0.33A
Secondary: 16.5VAC/40VA
DSCPTD 1640 Plug-in, Class 2
Transformer.
NOTE: Do not connect transformer
to a receptacle controlled by a
switch. (UL Installations only)
EU Installations
Power Supply: In a accordance with
EN40131-1, Type A, Grade 2
Primary: 220-240V
AC/50Hz/0.2A
Secondary: 16.5VAC/40VA min.
Tighten nut to break paint and make
good connection to the cabinet
To Next Page
