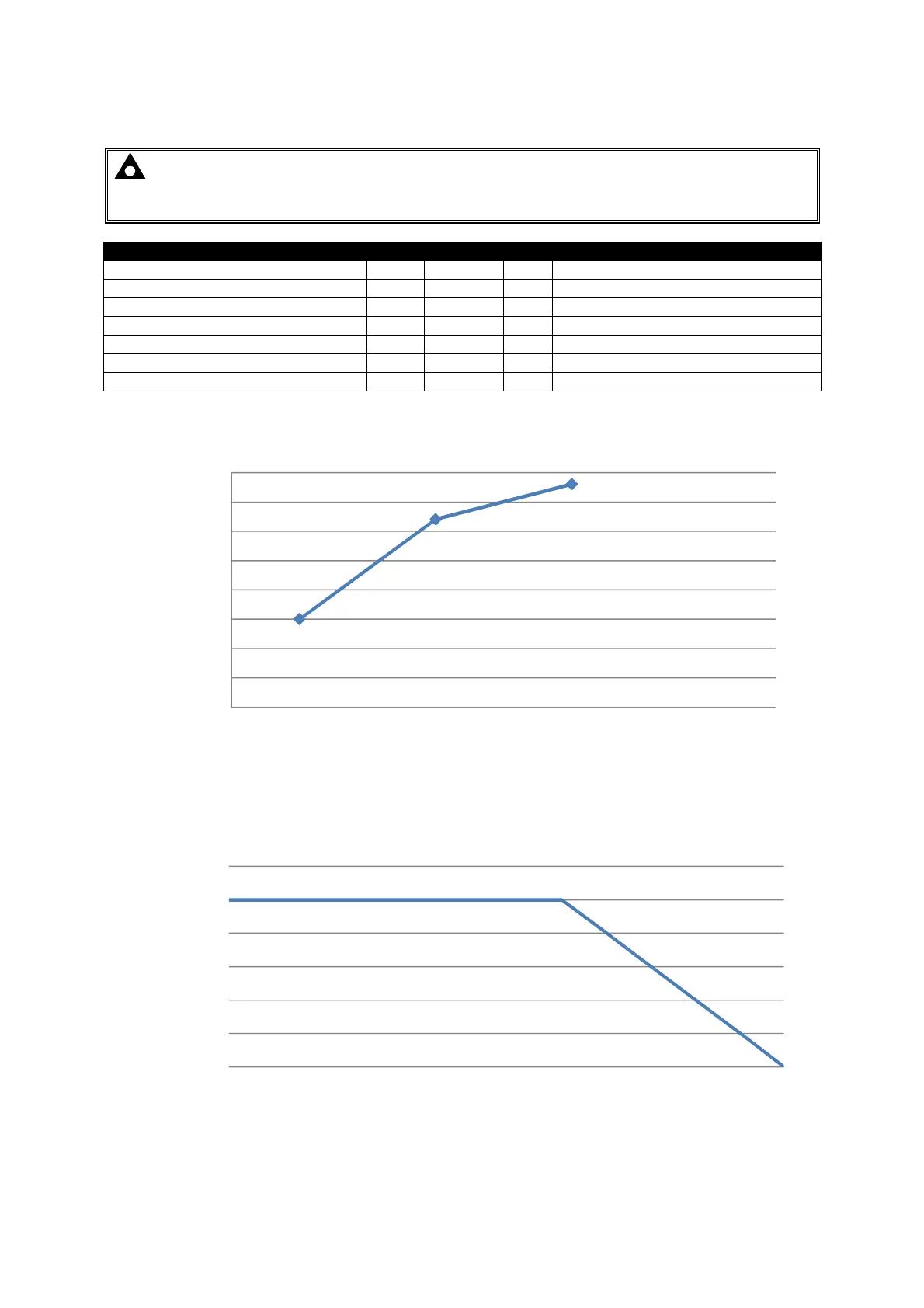

3.5.9 DSE9470 (MKII) 24V/12V 10A
NOTE: DSE9470 is factory configured to 24V 10A. If required, voltage and current levels
can be user configured via DSE Configuration Suite PC Software.
Part number 9470-001-00 is fixed at 24V 10A.
Output Voltage (24V DC Battery) 26.7V
27V 29V
Output Charging Current (A) 2A 10A 11A
Current limit threshold (A) 10A 11A
Recovery from current limit (A) 10A 11A
Full load AC input current (A) 2.3A
At Vin=230V, Vo=28.8V, Io=10Amp
Full load AC input current (A) 4A At Vin=110V, Vo=28.8V, Io=10Amp
AC Input Inrush (10ms) current (A) 60A For 10ms
0.885
0.89
0.895
0.9
0.905
0.91
0.915
0.92
0.925
110 230 277
Efficiency (%)
Input Voltage (V)
DSE9470 Efficiency Curve at 10A
0
2
4
6
8
10
12
-30 -20 -10 0 10 20 30 40 50 55 60 65 70 75 80 85
Output Current (A)
Ambient Temperature ºC
DSE9470 Smart Charger De-rating Curve
110V < Vin < 305V
