3.5.12 DSE9481 (MKII) 12V 5A
Parameter
Min
Nominal
Max
Comments
Output Voltage (24V DC Battery) 13.4V 13.5V 14.5V
Output Charging Current (A) 2A 5A 5.5A
Current limit threshold (A) 5A 5.5A
Recovery from current limit (A) 5A
Full load AC input current (A) 0.5A At Vin=230V, Vo=14.4V, Io=5Amp
Full load AC input current (A) 1.1A At Vin=110V, Vo=14.4V, Io=5Amp
AC Input Inrush (10ms) current (A) 60A For 10ms
89%
89%
90%
90%
91%
91%
92%
92%
93%
110
230
277
Efficiency (%)
Input Voltage (V)

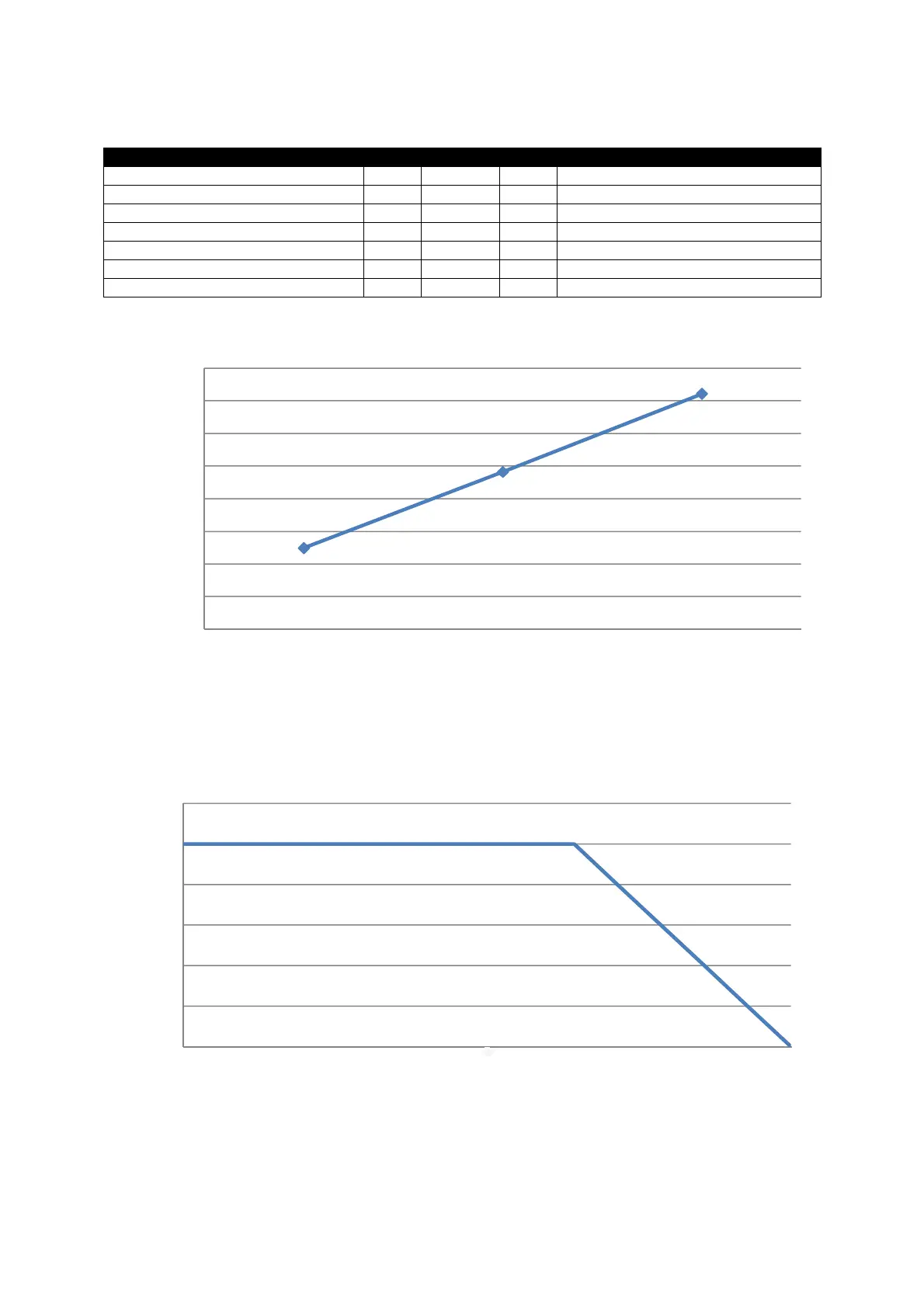

DSE9481 Efficiency Curve at 5A
0
1
2
3
4
5
6
-30 -20 -10 0 10 20 30 40 50 55 60 65 70 75 80
Output Current (A)
Ambient Temperature (°
°°
°C)
DSE9481 Smart Charger De-rating Curve
90V < Vin < 305V
