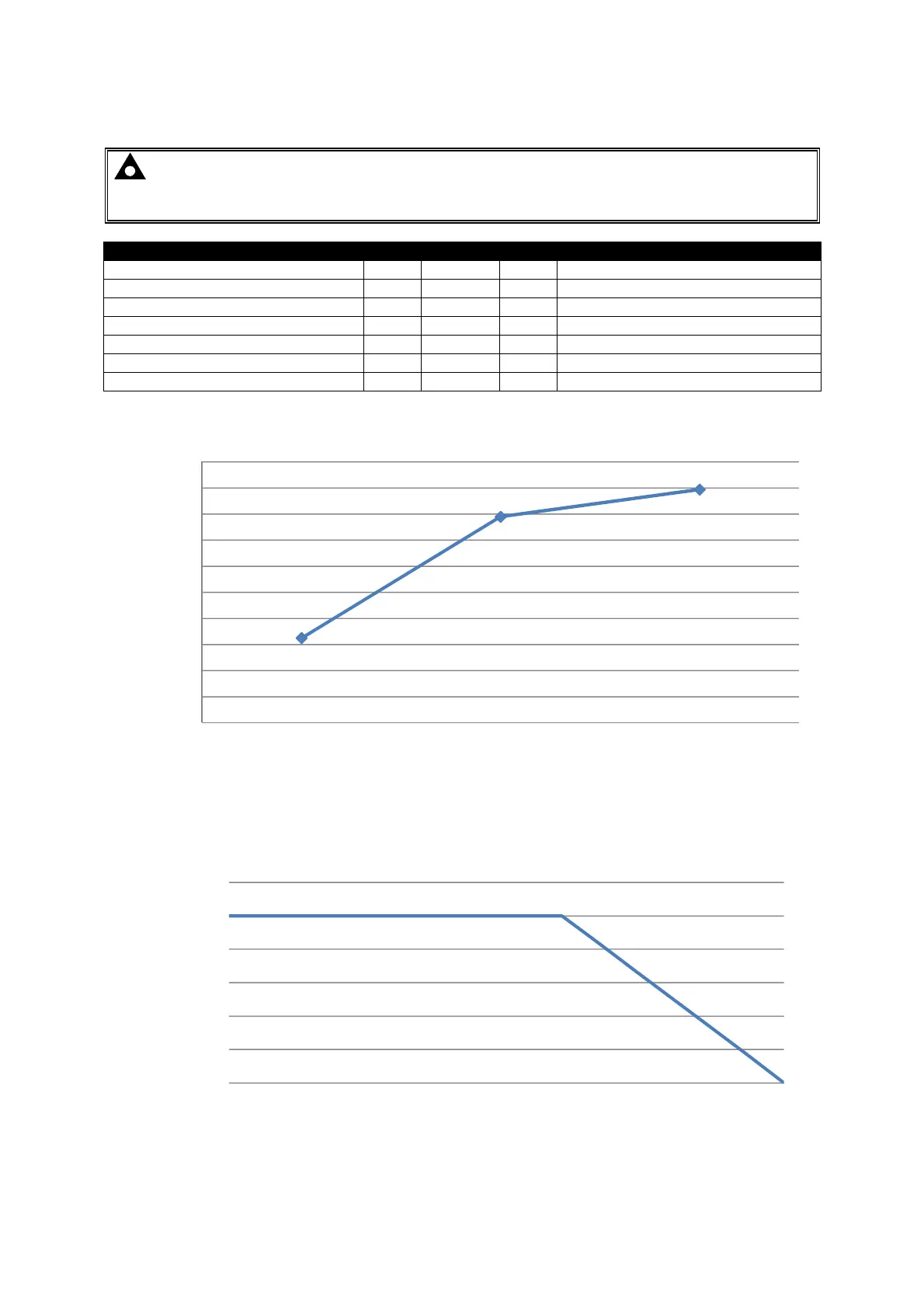

3.5.11 DSE9480 (MKII) 12V 10A
NOTE: DSE9480 is factory configured to 12V 10A. If required, voltage and currentl levels
can be user configured via DSE Configuration Suite PC Software.
Part number 9480-001-00 is fixed at 12V 10A.
Parameter
Min
Nominal
Max
Comments
Output Voltage (24V DC Battery) 13.4V 13.5V 14.5V
Output Charging Current (A) 2A 10A 11A
Current limit threshold (A) 10A 11A
Recovery from current limit (A) 10A 11A
Full load AC input current (A) 1.2A At Vin=230V, Vo=14.4V, Io=10Amp
Full load AC input current (A) 2.2A At Vin=110V, Vo=14.4V, Io=10Amp
AC Input Inrush (10ms) current (A) 60A For 10ms
87%
87%
88%
88%
89%
89%
90%
90%
91%
91%
92%
110 230 277
Efficiency (%)
Input Voltage (V)
DSE9480 Efficiency Curve at 10A
0
2
4
6
8
10
12
-
30
-
20
-
10
0
10
20
30
40
50
55
60
65
70
75
80
85
Output Current (A)
Ambient Temperature ºC
DSE9480 Smart Charger De-rating Curve
110V < Vin < 305V
