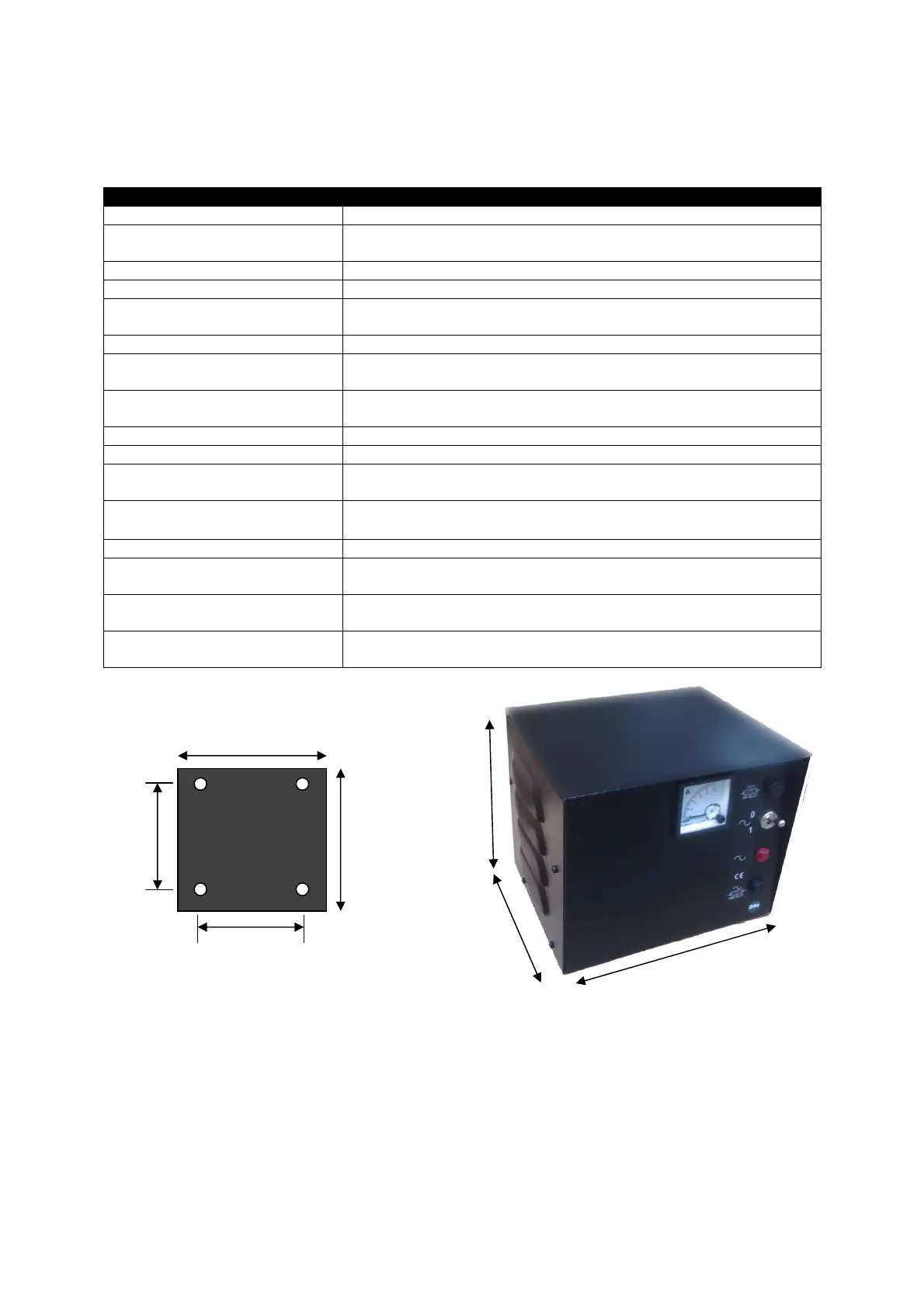

3.6 DIMENSIONS AND MOUNTING
3.6.1 DSE907 12V 10A INDUSTRIAL BATTERY CHARGER
Parameter
Comment
Cabinet type Custom cabinet
Overall size
(see below for diagram)
200mm x 185mm x 170mm (7.9“ x 7.3“ x 6.7“)
Add 20mm (0.79”) to depth when using supplied mounting plate.
Material: Sheet steel enclosure of all-round solid construction
Surface finish: Powder-coated black
Protection category:
IP20
NEMA 1
Weight 5.6kg
Mounting type
Wall mounting using supplied wall bracket
Wall bracket add 20mm (0.79”) to the depth of the enclosure
Mounting holes
Diameter 5mm (0.2”)
130mm (5.1) centres
Input voltage (nominal) 110V-277V
Input voltage (absolute range) 90V-305V
Charge failure relay rating
3A DC resistive
30V maximum
Operating Temperature
-30°C to 55°C
(-22°F to 131°F)
Controls AC Power on/off
Indication
0A-10A DC ammeter
Power on Red neon indicator
AC Fuse
Fuse holder mounted onto front panel.
Accepts 2A anti-surge fuse (20mm x 5mm fuse)
DC Fuse
Fuse holder mounted onto front panel.
Accepts 5A anti-surge fuse (20mm x 5mm fuse)
Mounting Plate (supplied)
Enclosure
Dimensions in mm
170mm
add 20mm when
fitting supplied wall
bracket
185mm
200mm
165mm
170mm
130mm
130mm
