Operation
53
5.3 DSE9130, DSE9150, DSE9155, DSE9250 & DSE9255
DSE9155 30V 2A
DSE9250 24V 3.7A
DSE9255 24V 5A
DSE9150 12V 2A
DSE9150 12V 3A

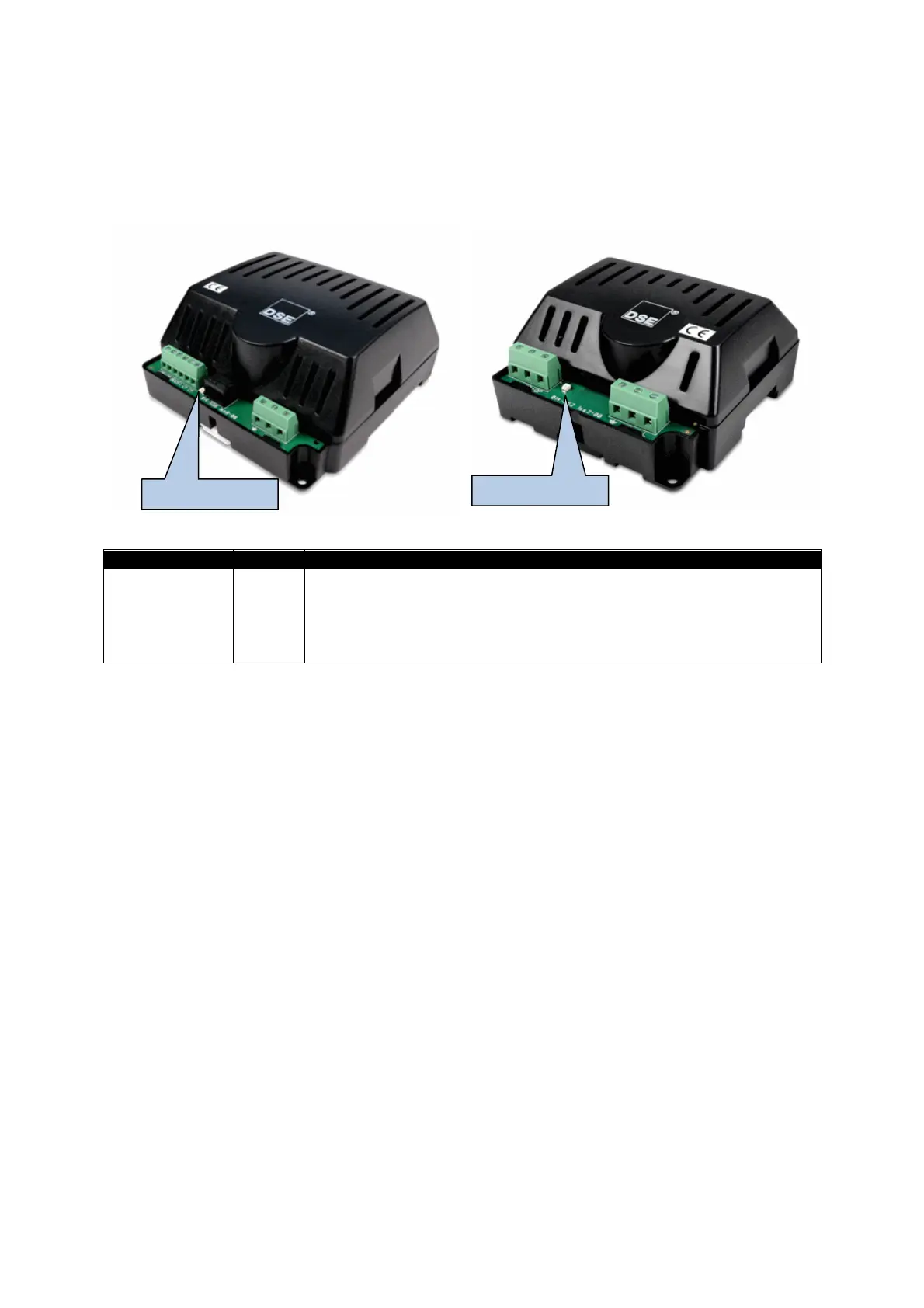

LED Indications
Charger Status Red
Off when AC supply is not present or output volts are too low.
• Steady during normal operation with AC supply above minimum
operating voltage.
• Flashing when connected to an operating charging alternator.
• Pulsing during overload conditions.
Charger Status
Charger Status
