DSE DSE9130 - Operating Modes and Battery Charging Profiles

Operation
54
5.4 DSE9140 & DSE9260
DSE9140 12V 10
A
DSE9260 24V 10A

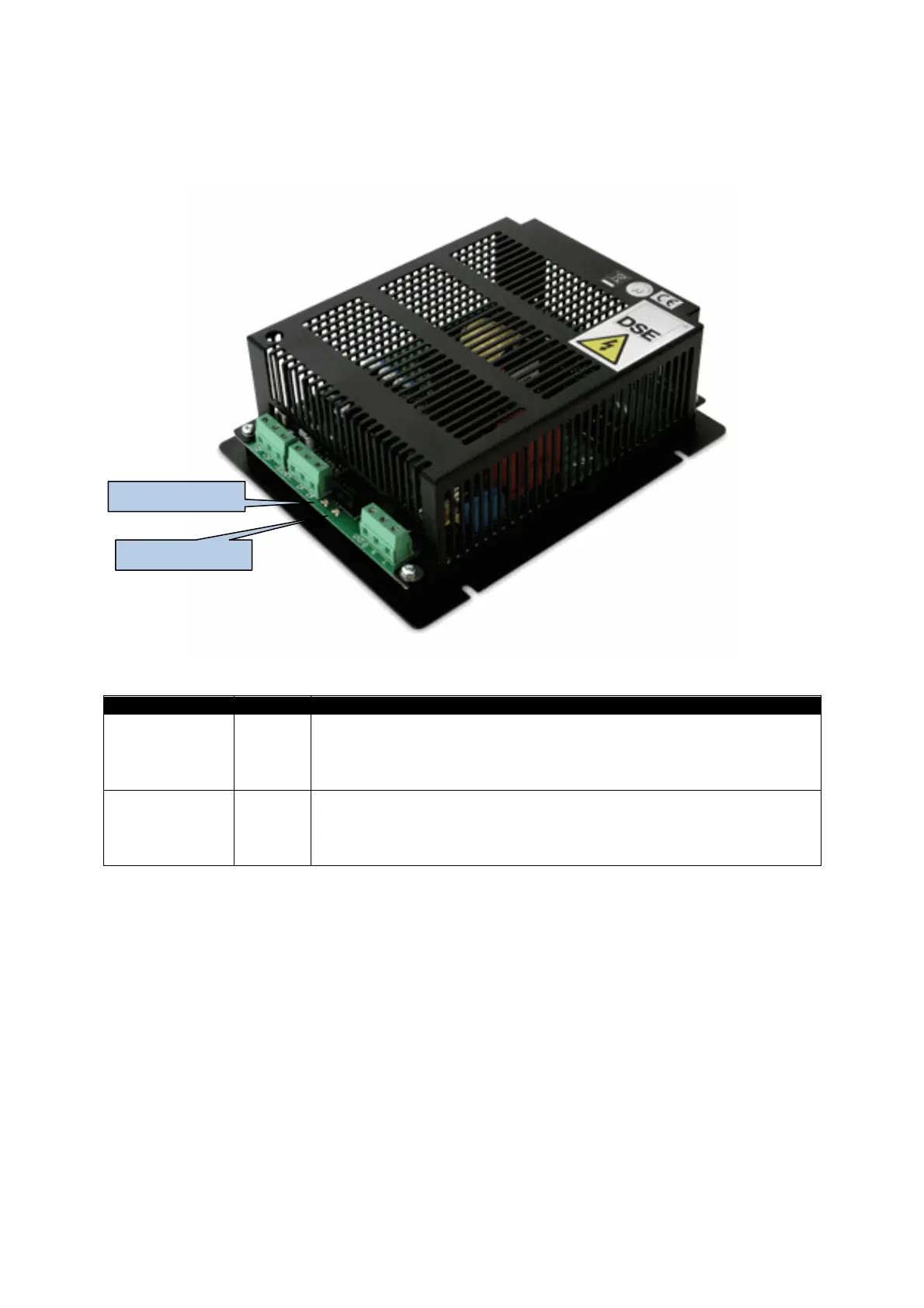

LED Indications
Function
LED
Action
Charger Status Red
•
Off when AC supply is not present or output voltage is too low
• Steady during normal operation with AC supply above
minimum operating voltage
• Flashing when connected to an operating charging alternator
Short circuit and
reverse polarity
indication
Green
•
Off when AC supply is not present or output voltage is too low
• Steady during normal operation with AC supply above
minimum operating voltage
• Flashing during short circuit or reverse polarity conditions
Charger Status
Short Circuit
