DSE DSE9130 - Dse9470 Mkii, Dse9472 Mkii, Dse9480 Mkii, Dse9481 Mkii; Status; Charge Mode; Fault Conditions

Operation
55

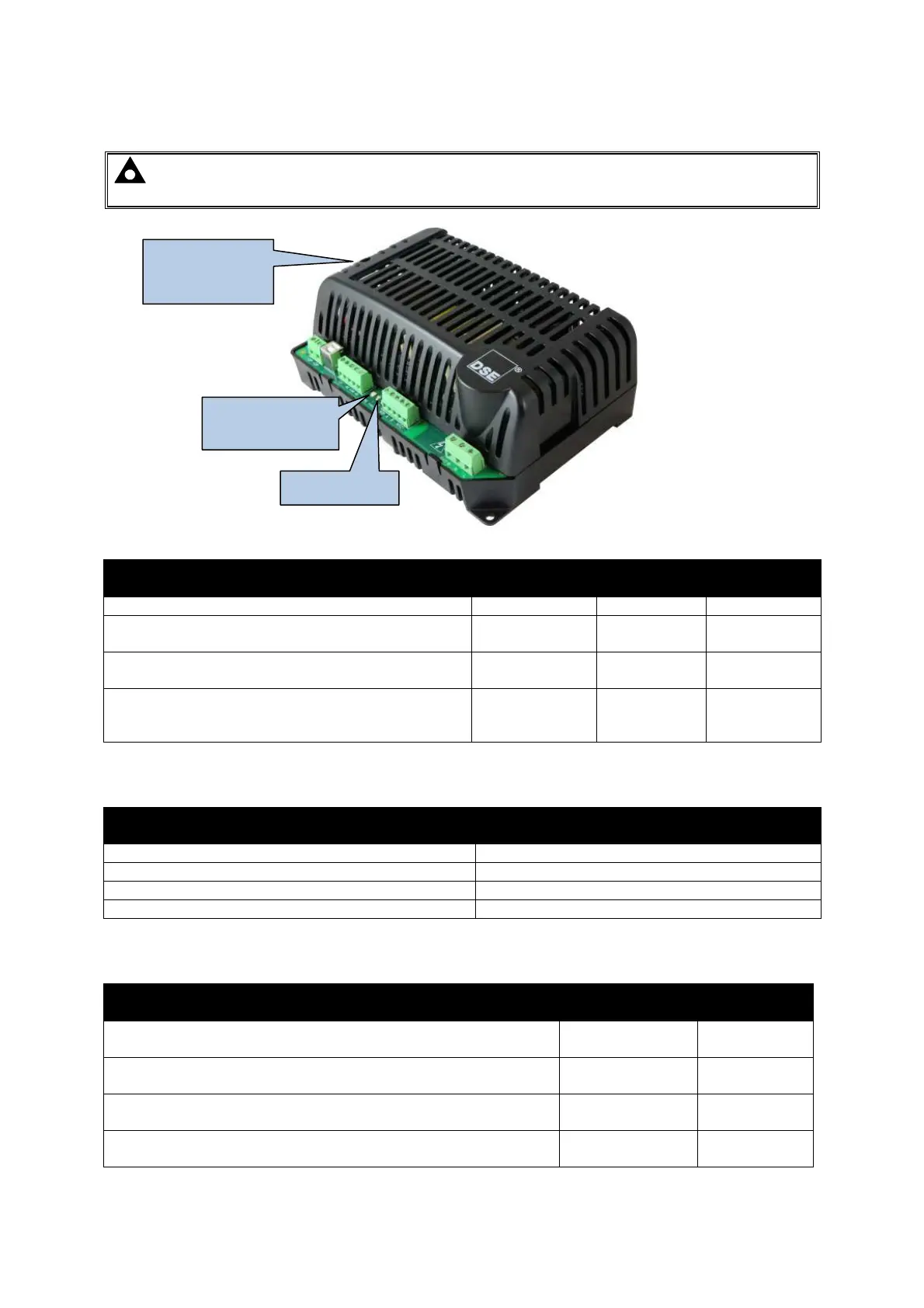

5.5 DSE9470 MKII, DSE9472 MKII, DSE9480 MKII, DSE9481 MKII
NOTE: For obsolete parts 9470-001-00 and 9480-001-00 contact DSE Technical Support for
LED descriptions.
5.5.1 STATUS
Condition
LED
DESIGNATION
OPE
FAULT 1
FAULT 2
Charger Off Off Off Off
Battery not Detected (Battery Detection Mode)
Green
Constant
Red
Constant
Red
Flashing
Battery Connected (Battery Detection Mode)
Green
Constant
Red
Constant
Red
Constant
Not Charging
(Charger is operating correctly but the ouput has
been disconnected from the battery)
Off
Red
Constant
Red
Constant
5.5.2 CHARGE MODE
Mode
LED DESIGNATION
OPE
Bulk Charge in progress Yellow Constant
Absorption Charge in progress Yellow Flashing
Float Charge in Progress Green Constant
Storage Charge in Progress Green Flashing
5.5.3 FAULT CONDITIONS
Condition
LED
DESIGNATION
FAULT 1
FAULT 2
High Output Voltage (DC)
Red
Constant
Off
High / Low Input Voltage (AC) or High Output Current (DC)
Red
Flashing
Off
High Ambient / Charger Temperature, High Battery
Temperature (if enabled)
Off
Red
Constant
Short Circuit/ Reverse Polarity (DC Output Connection) Off
Red
Flashing
Charger Status
(OPE)
Fault LEDs
Boost Voltage
potentiometer
access hole
