DSE DSE9130 - Typical Wiring Diagram; Dse9150

Installation
49

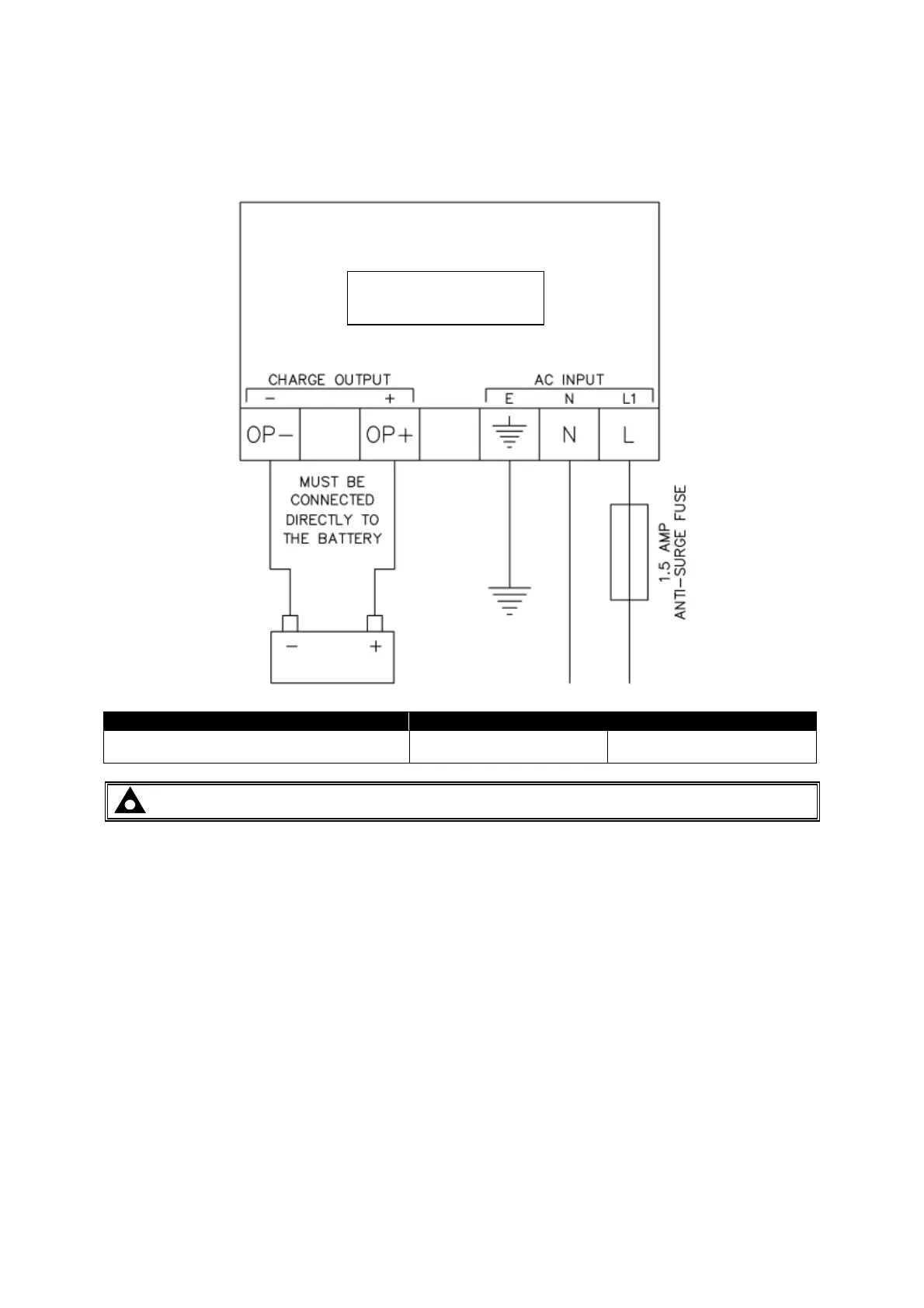

4.3 TYPICAL WIRING DIAGRAM
4.3.1 DSE9150
Recommended AC fuse
230V AC Input
110V AC Input
DSE9150 12V 2A charger (see Note below)
DSE9150 12V 3A charger
1.0A anti-surge
1.5A anti-surge
1.5A anti-surge
2.0A anti-surge
NOTE: DSE9150 12V 2A is no longer available and is included for legacy support only.
DSE9150
