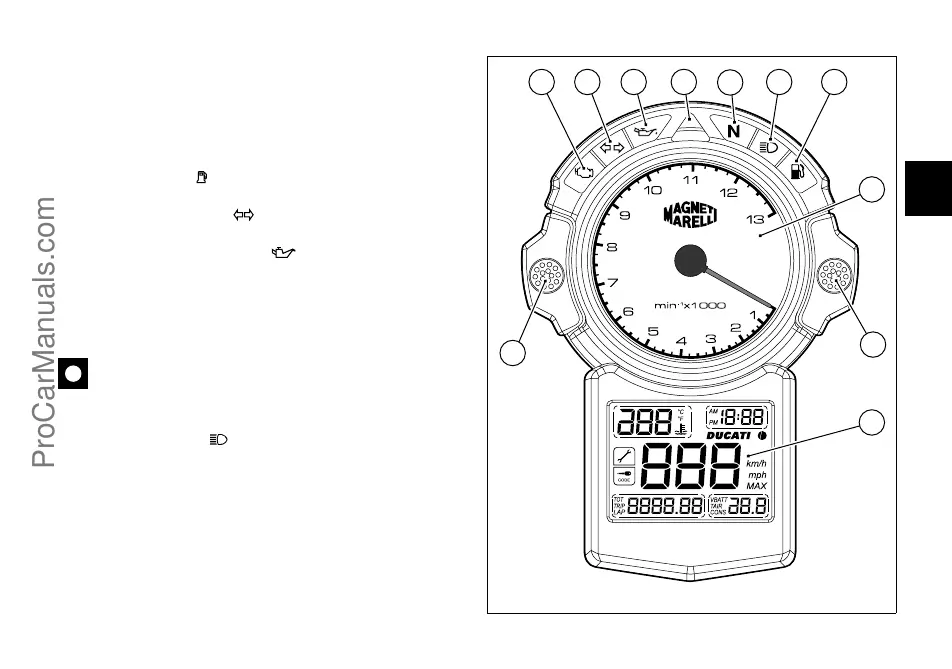

Instrument panel (fig. 4)
1) LCD, (see page 12)
2) Engine revolution meter (rpm).
Indicates engine rpm.
3) Neutral light N (green).
Comes on when gearbox is in neutral.
4) Low fuel light (yellow).
Comes on when there are about 3 litres of fuel left in the tank.
5) Turn indicator light (green).
Comes on and flashes when a turn indicator is on.
6) Engine oil pressure light (red).
Comes on when engine oil pressure is too low. This light
must illuminate when ignition is switched to ON and
must go out a few seconds after the engine starts.
It may briefly come on when the engine is hot, however,
it should go out as the engine revs up.
Important
If this light (6) stays on, stop the engine or it may
suffer severe damage.
7) High beam light (blue).
Comes on when high beam is on.
