Front fork adjusters
The front fork can be adjusted in rebound, compression
and preload.
This adjustment is performed using outer screw-type
adjusters:

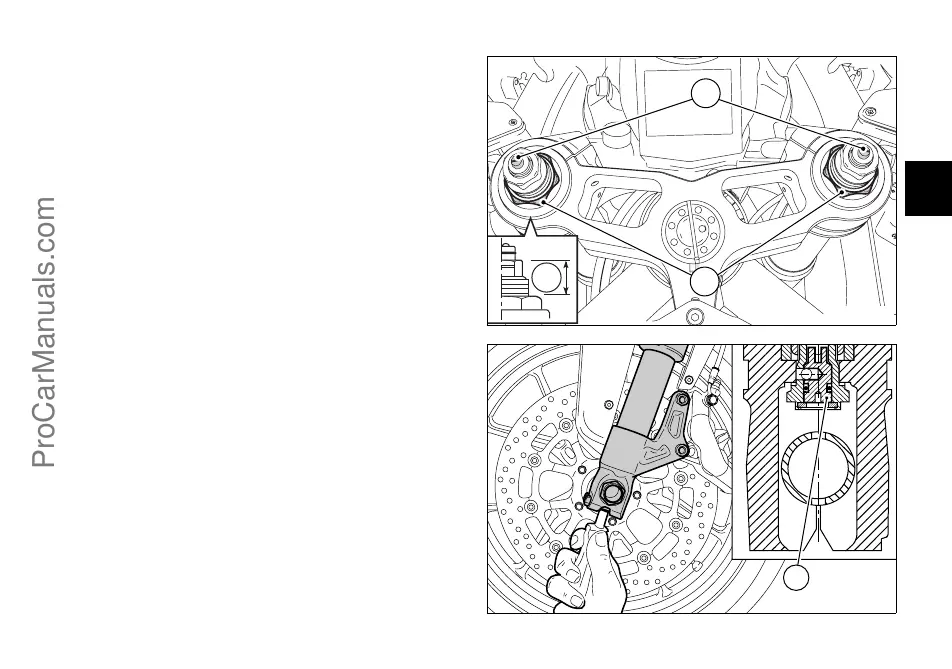

1) to adjust rebound damping (fig. 37);
2) to adjust inner spring preload (fig. 37);
3) to adjust compression damping (fig. 38).
Park the motorcycle in a stable position on its side stand.
To set rebound damping, turn the top adjuster (1) on each
fork leg with a small flat screwdriver.
To turn adjuster (3) insert a screwdriver through the hole in
the wheel spindle at the fork leg axis.
As you turn the adjusting screws (1 and 3), you will hear
them click. Each click identifies a setting. The maximum
damping is obtained with the adjuster fully tightened to the
“0” position. Start with this position and turn
counterclockwise. Count the screw clicks, which
correspond to position 1, 2 and so forth.
3
fig. 38
A
2
1
fig. 37
