If you wish to set steering head angle at 23° 30’, match the
last hole at the front end of the steering lock peg (3) with the
mounting hole in the steering head. Apply medium-strength
threadlocker to the screw (2) and use the screw to secure
the steering damper, after installing the steering lock peg (3).
Rotate the ball joint (A) of the steering damper rod
through 180°. Apply medium-strength threadlocker to the
screw (1) you have removed previously and secure the
steering damper with the screw.
Grease the previously loosened screw (4) and torque to
23 Nm ± 5%.
1
A

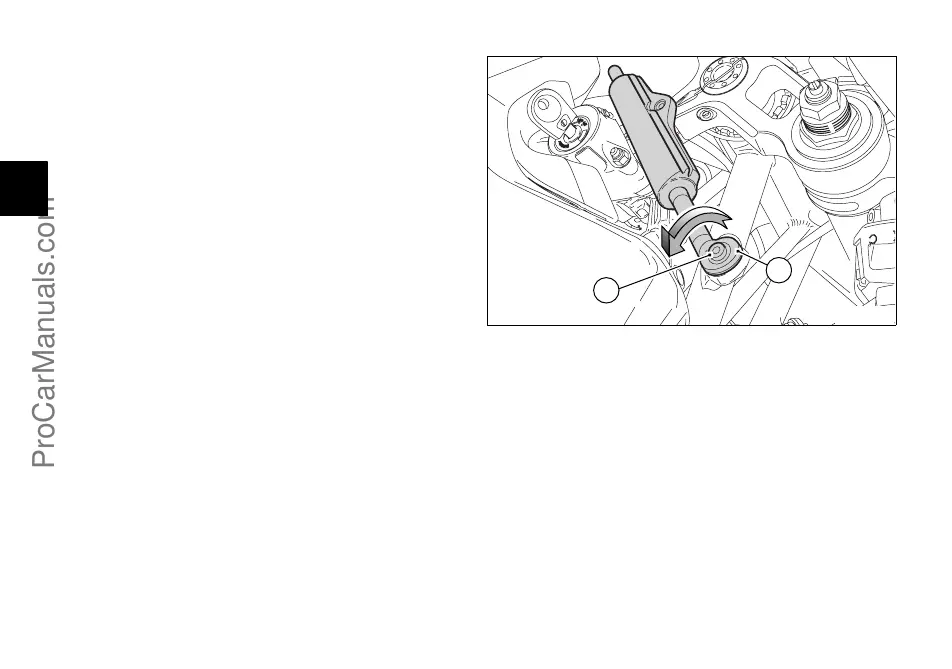

fig. 65
