Ducati DESERTX - Checking Drive Chain Tension

Checking drive chain tension

Improper chain tension will lead to early wear of
transmission 
Make the rear wheel turn until you find the position
where chain is tightest.
Position the vehicle on the side stand.
With a finger, push down the chain at the point of
measurement and release.

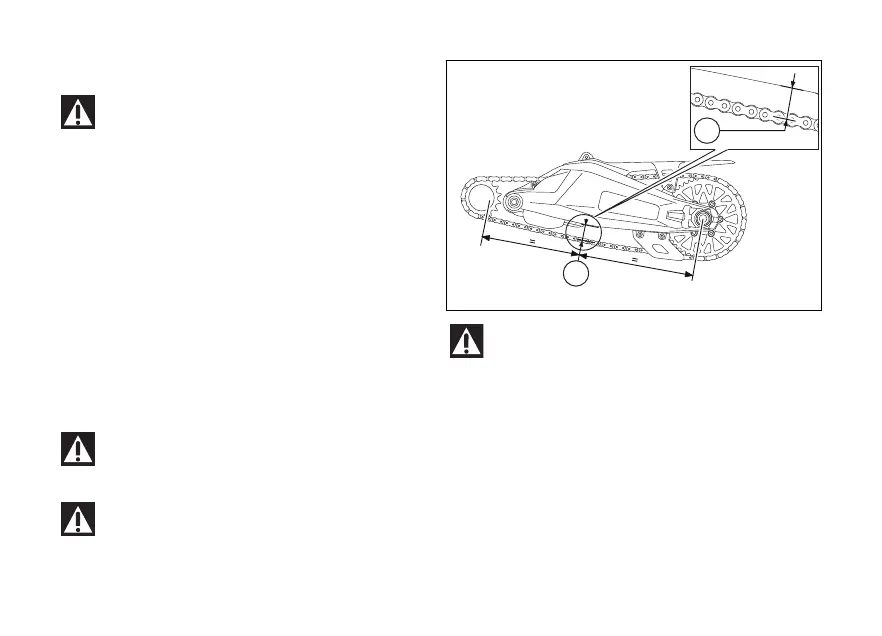

Measure the distance (A) between the swinging arm
and the chain pin centre, placing the tape measure at
the rear end of the chain sliding shoe.
Value (A) between the centre of the chain pins and
the sliding shoe, for chain tensioning, is allowable if:
A = (47 ÷ 49) mm (1.85 ÷ 1.93) in.
This only applies to the motorcycle standard
 available upon delivery.

This only applies to the motorcycle STANDARD
 available upon delivery.

Repeat the measurement at three 
equally spaced points on the chain.

Carry out these inspection operations with the
engine  the vehicle at a standstill, on a flat ground
and on the stand.
A
A
Fig 182
272
