Main fuse (C) is 30 A and is positioned on the RH side
of underseat electrical components
To gain access to this fuse, slide it out of elastic band
(E) and remove cap (F).
Fuses (D) on the solenoid both 30 A, serve:
one as protection of the solenoid and the
other one is a spare fuse.
Remove the fuse protection cap (E) to reach the
fuses.

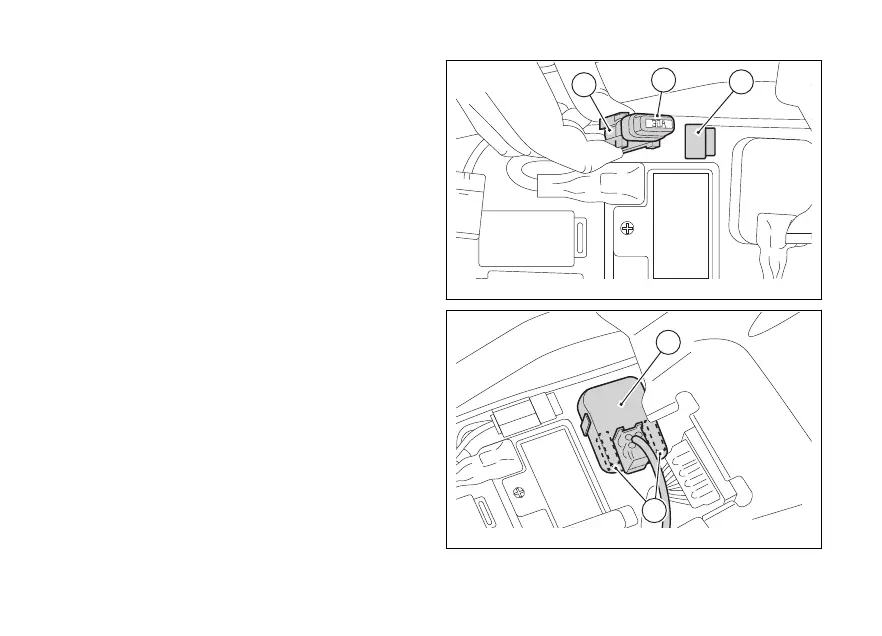

Fig 200
Fig 201
