Ducati Scrambler Owner's Manual

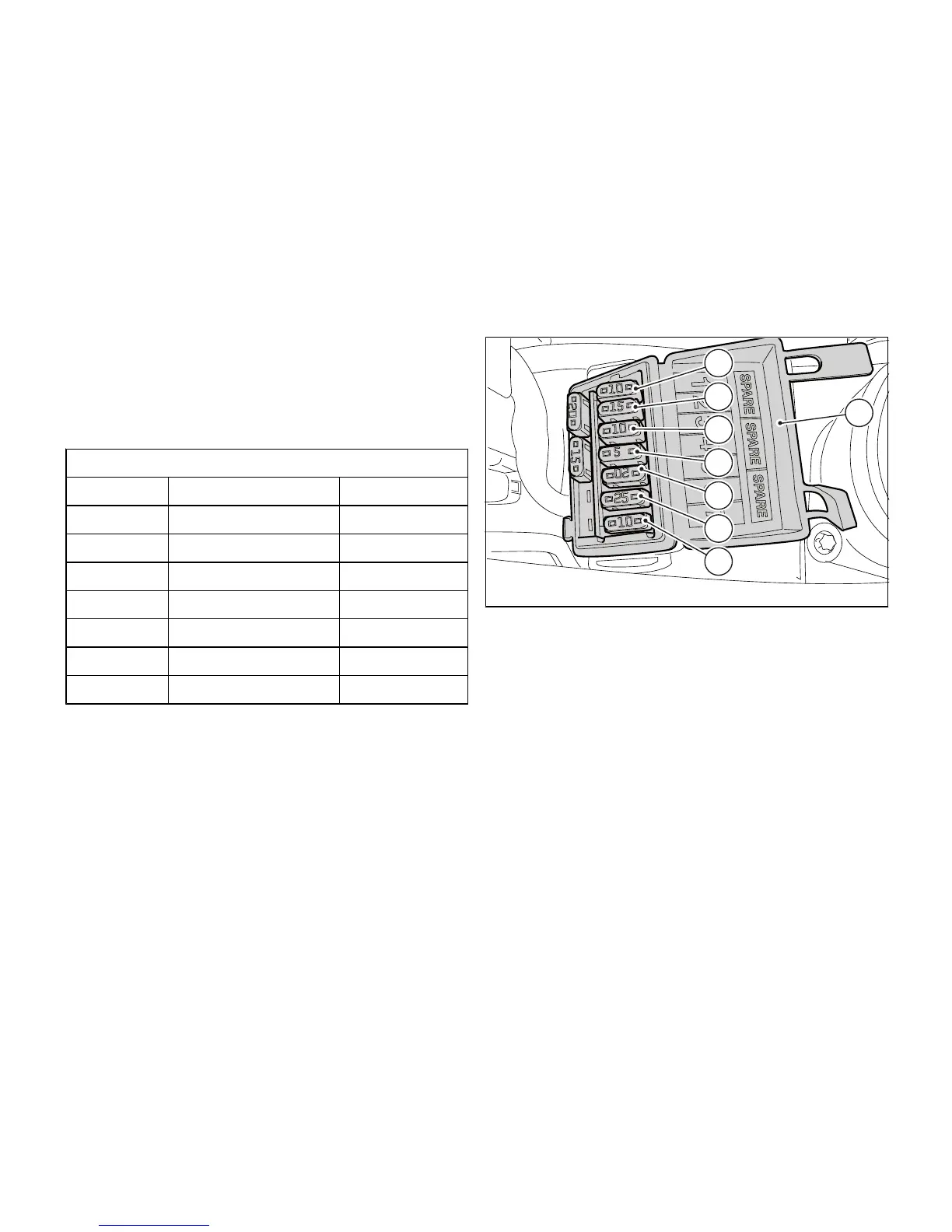

The fuse box (A, Fig 129) is located under the seat so
it is necessary to remove the seat and the battery
cover to reach it. To expose the fuses, lift the box
protective cover. Mounting position and ampere
capacity are marked on box cover.
Fuse box key
Pos El. item Rat.
1 Key-On 10 A
2 El. loads 15 A
3 Instrument panel 10 A
4 Control unit 5 A
5 Injection 20 A
6 ABS motor 25 A
7 ABS 10 A
1
A
2
3
4
5
6
7
Fig 129
192

Ducati Scrambler Specifications

General

Power	73 hp (54 kW) @ 8, 250 rpm
Transmission	6-speed
Frame	Tubular steel trellis frame
Torque	49 lb-ft (67 Nm) @ 5, 750 rpm
Front Suspension	USD Kayaba 41 mm fork
Rear Suspension	Kayaba rear shock, preload adjustable
Rear Brake	245 mm disc, single-piston caliper
Fuel Tank Capacity	13.5 l (3.6 US gal)
Front Brake	330mm disc, radial 4-piston caliper, ABS
