Preparation Before Use
Before Using This Machine
1
REFERENCE
The number of the side guides of the card stacker
can be changed according to the number of cards
per document.
REFERENCE

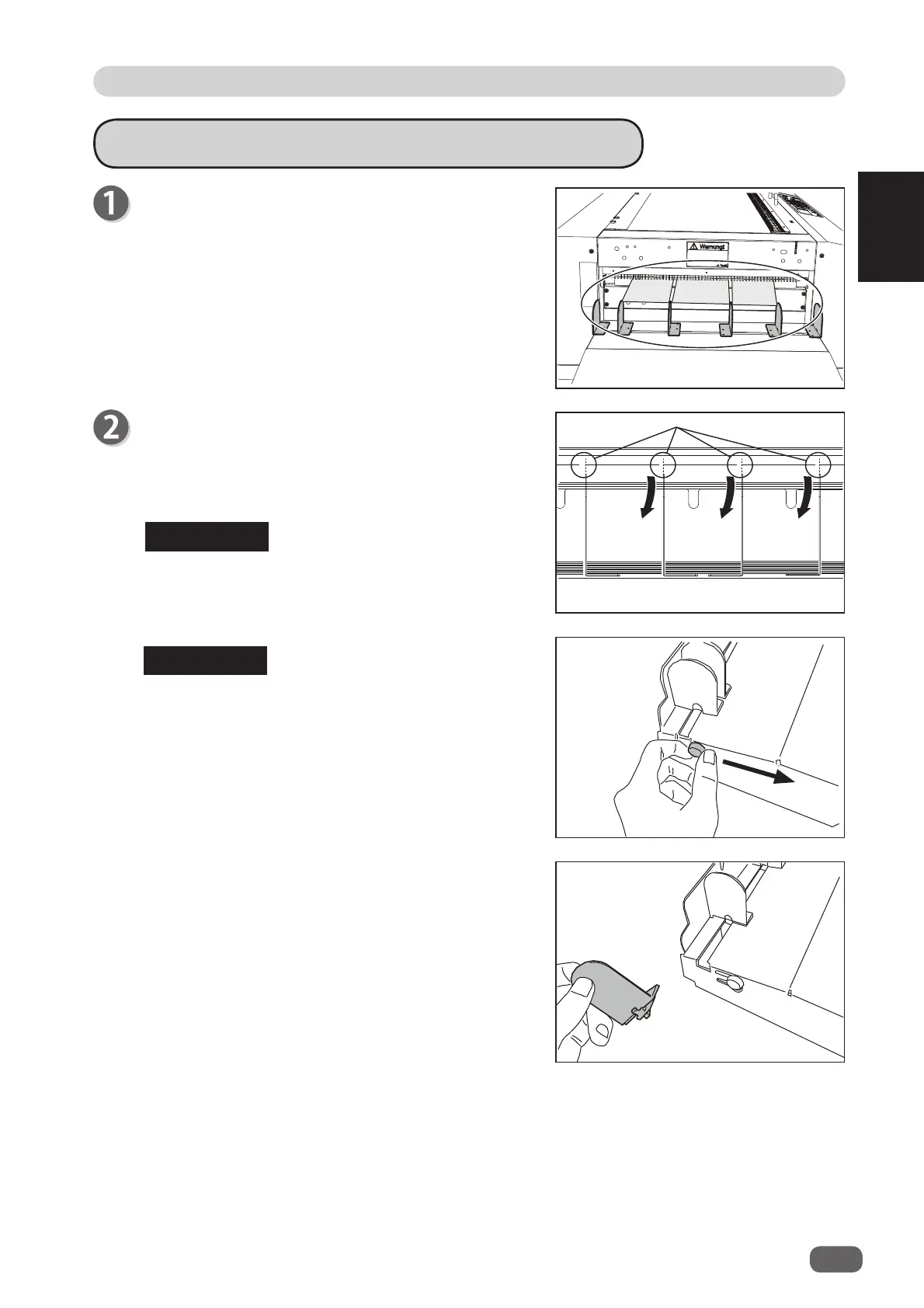

Adjusting the Card Stacker Guides
Select a JOB that uses the card stacker, and press
and hold the TEST key. The fi nished product stops
at the exit before being ejected.
Slide each side guide to the ejected position of the
fi nished
product.
(A)
Adjust the side guide so that the side edge of the
fi nished product comes into contact with the side
guide. This adjustment can stack the short fi nished
products properly.
1. Loosen the thumbscrew to slide the stopper.
2. Remove or attach the side guides according
to the JOB which you select.
The right fi gure shows front view of (A) in step 1.
